4230-006-1
4230-006-1
Bird RF

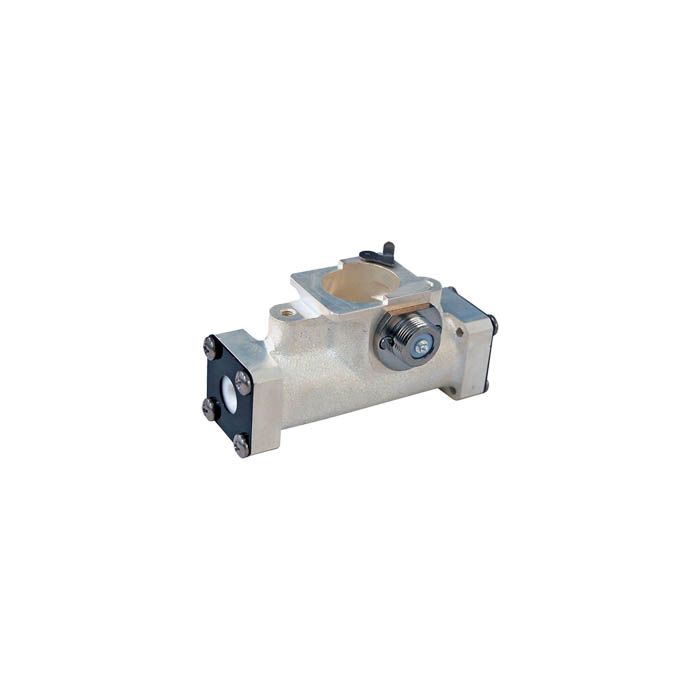

7/8" Thruline® RF Line Section
4230-006-1 is a 7/8" 50 Ohm, Line Section designed for insertion between a RF transmitter and antenna or RF load. The line is equipped with one socket where the user inserts a plug-in element to measure forward and reflected power. Select from a wide variety of Bird® Plug-In Elements and Quick Change RF Connectors for the desired power rating and frequency range.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7/8 in Line Section |
| Dimensions | Length 4 in |
| Element sockets | 1 |
| Line size | 7/8 in |
| Connectors | QC (not included) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
