4304A
4304A
Bird
25 to 1000 MHz, 5-500 W, Fixed Element RF Wattmeter

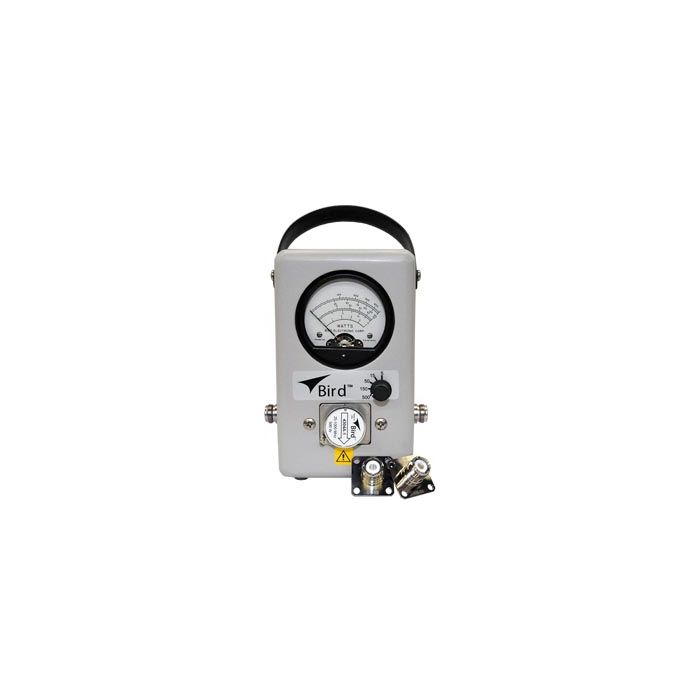

The Bird 4304A Wattmeter is an in-line sensor that measures RF power and load match in 50 Ohm coaxial transmission lines. It can be used with CW, AM, FM, and TV modulation, but not pulse modulation. It is supplied with a special broadband element with a frequency range of 25 to 1000 MHz. It can measure up to 500 W, depending on the frequency, and has a maximum VSWR of 1.07 with the standard “N” connectors. A range switch allows the full scale power to be reduced for greater accuracy.
The wattmeter is portable, with an included carrying strap. It has an aluminum housing and an easily removed back cover, with bumpers on the base and back that allow the meter to stand or lie flat. For additional protection, the microammeter is specially shock mounted. A screw on the lower front face of the meter is used to zero the pointer. Below the meter face, the RF line section protrudes slightly from the wattmeter housing with the element socket in the center
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | Fixed 25-1000 MHz 5-500 Watt Element, Wattmeter |
| Absolute Accuracy | 25 to 100 MHz, ± 7% of full scale, using correction charts. 100 to 512 MHz, ± 6 of full scale, no correction needed. 512 to 1000 MHz, ± 7% of full scale, no correction needed. |
| Dimensions | 6-7/8" x 5-1/8" x 3-5/8", including connectors 175 x 130 x 92 mm |
| Housing surface finish | Light Gray Powder Coat |
| Frequency Range | 25 MHz to 1.0 GHz |
| Insertion Loss | 25 to 512 MHz, 0.10 dB max. (with UHF female conn.) 512 to 1000 MHz range, 0.13 dB max. |
| Insertion VSWR | 25 to 521 MHz, 1.05 max. (with UHF female conn.) 512 to 1000 MHz, 1.07 max. |
| Power range | 5, 15, 50, 150, 500 W, with no scale limitations except power limited to 150 W from 800 to 1000 MHz |
| Connectors | QC Type (Female N normally supplied) |
