Bird
440-960 MHz, Cellular Specialist RF Wattmeter

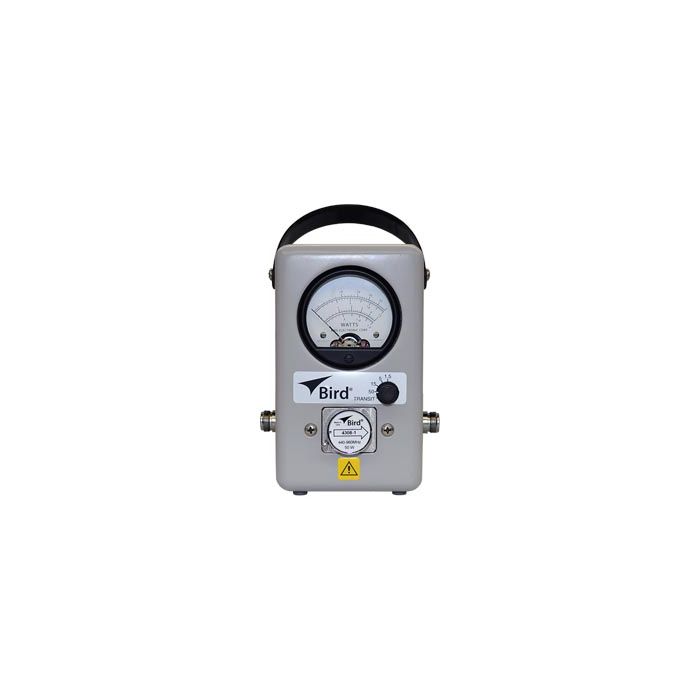

he Model 4308 Thruline Wattmeter is a portable multi-range RF wattmeter. It is a device which requires no external power source or batteries for operation. It is used to measure RF power when inserted into a transmission line of 50 Ohms impedance.
When operated in this manner, it is used to determine power flow and load mismatch in coaxial transmission lines. It may be used to make measurements of CW, FM, or PM (Plane Modulated) RF Power.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | Cellular Specialist Wattmeter |
| Absolute Accuracy | ± 5% of full scale |
| Dimensions | 6.88 in x 5.13 in x 3.63 in, including connectors (175 mm x 130 mm x 92 mm) |
| Housing surface finish | Light Gray Powder Coat |
| Frequency Range | 440 to 960 MHz |
| Insertion VSWR | 1.05 with TNC connectors (QC Type) |
| Power range | 1.5, 5, 15, 50 W, with no scale limitations |
| Connectors | QC Type (Female TNC normally supplied) |
