4391A
4391A
Bird

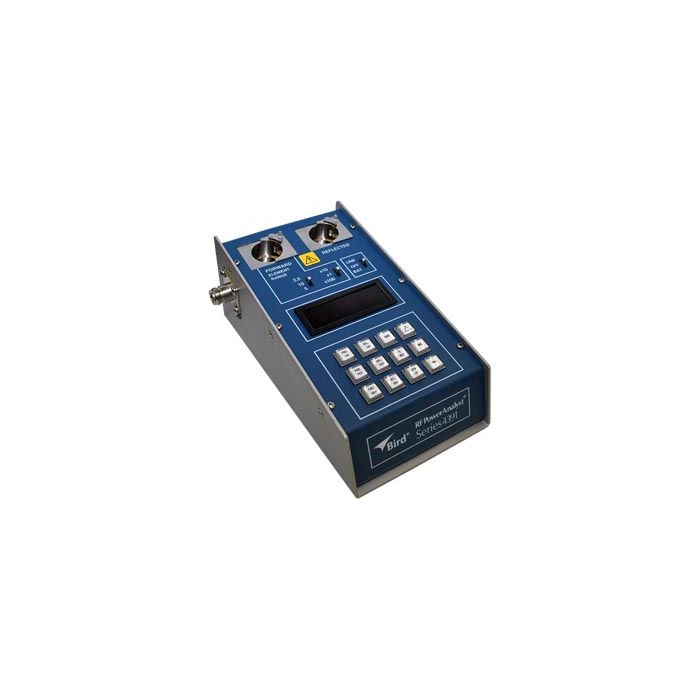

PEP-Dual Element, RF Power Analyst
The 4391A, RF Wattmeter monitors Peak Pulse Power, Peak Envelope Power, or CW Power during normal equipment operations in the forward or reflected direction. Designed for air navigational aids DME, ATC and other pulsed RF systems such as telemetry, radar, command and control, etc. They need no attenuators, directional couplers or charts.
Features
Frequency: 0.45 - 2700 MHz. Power: 100 Mw – 10 kW
Reads forward and reflected CW or FM power in watts or dBm, Peak Envelope Power of SSB/DSB and symmetrical AM in watts
Calculates SWR, return loss in dB and 5 modulation
Shock-resistant keyboard and range switches. RFI protection. Built-in international power supply/charger
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | PEP-Dual Element, Power Analyst |
| Sampling Rate | 2 to 3 readings per second |
| Absolute Accuracy | Power Readings: ± 5% of full scale CW, ± 8% PEP. VSWR: ± 10% of reading % Modulation: (CW power 1/3 or more of full scale) ± 5% (0 to 90%), ± 10% (90 to 100%) |
| Dimensions | 9.56 in x 5.22 in x 4.31 in (243 mm x 158 mm x 110 mm) |
| Housing surface finish | Blue vinyl with silver anodized side panels |
| Frequency Range | 450 kHz to 2.7 GHz |
| Insertion VSWR | with N Connectors 1.05 max. to 1000 MHz |
| Power range | 100 mW to 10 kW using Bird® Plug-in Elements |
| Pulse | Pulse width 0.8 µs (100 to 2700 MHz) 1.5 µs (26 to 99 MHz) and 15 µs (2 to 25 MHz) Repetition Rate 25 PPS and Duty Cycle 1 x 10¯ 4 |
| Elements | Select (2) elements in a 10:1 power ratio (See Compatible Devices below) |
| Modulation | 25 to 10,000 Hz (Audio) |
| Return loss | ± 0.3 dB to corresponding SWR value |
| Usuable over range | to 120% of scale (CW, PEP, SWR and Return Loss) |
| Display Type | 3.50 digit, 0.3 in LED strobed |
| Connectors | QC Type (Female N normally supplied) |
| Battery Life | 8 hours (rechargeable) |
| Power Supply | 100-130/200-260 V, 50/60 Hz, 6 W |
