HAEFELY AG

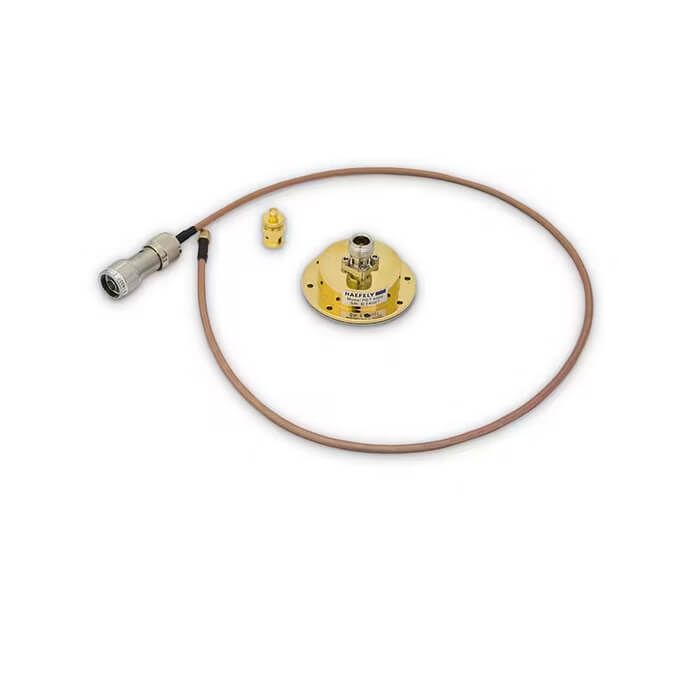

PET 4000 - ESD Calibration Set According To IEC/EN 61000-4-2
This Calibration Set Allows Users To Take Measurements Conforming To The 4 GHz Requirement In Accordance With IEC 61000-4-2
Measurement of individual impulse parameters is performed using a special coaxial current shunt. This has a nominal impedance of 2 Ohms. Because ESD events can be generated as high as 120 A, attenuators are required to reduce the impulse-voltage level so it can be displayed on commercial oscilloscopes.
An oscilloscope with minimum 2 GHz bandwidth is required to properly display the ESD impulse. The Calibration Set has been developed as a tidy unit with the cable, attenuator and measuring target required to perform IEC/EN 61000-4-2 calibrations.
The ESD Calibration Set is complete with instructions and application sheet.
Key Features
- Compliance to IEC 61000-4-2 Ed. 2.0
- 4 GHz bandwidth
- Up to 30 kV / 120 A ESD-impulse
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Weight | 0.5 kg (1.1 lbs) approx. |
| Input Resistance | 2 Ohm |
| Coaxial Cable Length | 1 m |
| Max Pulse Amplitude | 30 kV / 120 A |
| Output Voltage Into | 0.2 V/A |
| 50 Ohm Load (DSO Input) | 0.2 V/A |
| Weight | 0.5 kg (1.1 lbs) approx. |
