HAEFELY AG
AXOS Switch Box - Switch Box For Connecting Multiple Haefely AXOS Units
AXOS Switch Box
The Haefely SWITCH BOX is an extension of the AXOS 5 / AXOS 8 Test System used to connect multiple AXOS accessories and units.
The SWITCH BOX has been designed to help skip the manual reconnection of accessories with Haefely AXOS test systems, thus reducing the time needed for test set-up.

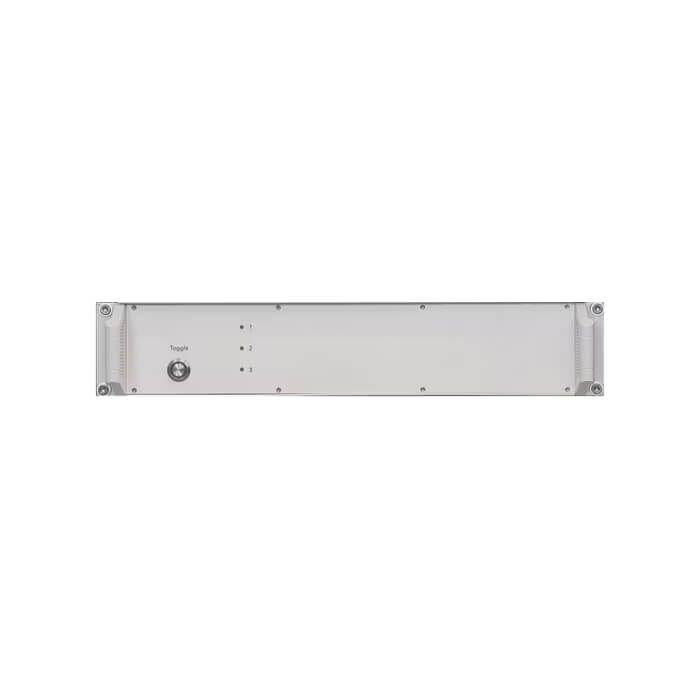

In the front view, there are three LEDs which indicate the active output #1, #2 or #3 depending on customer selection. Units are automatically recognised by the AXOS and become ready for use.
Key Features
- AXOS recognises the type of connected accessory unit via the Switch Box
- Useable with a rack or as a stand-alone solution
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories |
Switch Box Device |
| Dimensions | 450 x 90 x 310 mm (17.7 x 3.5 x 12.2 in) |
| Weight | 5 kg |
| Input Connection | 1 x male SUB-D 37p |
| Output Connection | 3 x femal SUB-D 37p |
| Mains Power Supply | Powered by AXOS 5 / AXOS 8 |
| Output Control | Via "Toggle" button |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
