63218E-600-1260
63218E-600-1260
Chroma ATE
10U DC Electronic Load - 600V, 1260A, 18kW (Softpanel not included)
High Power DC Electronic Load

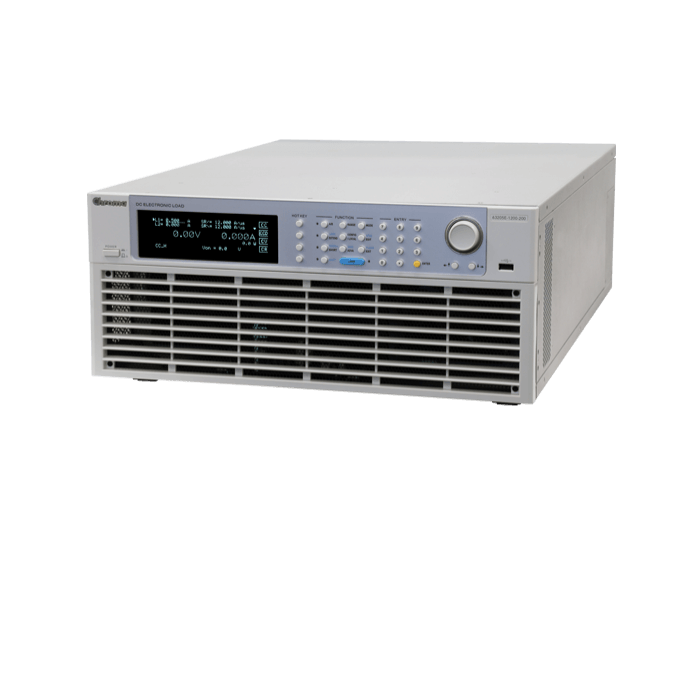

The Chroma 63218E-600-1260 is a high-power DC load that has an operating voltage of 600V, a power level of 18kW and up to 1,260A in a single unit.
Power levels can increase up to 240kW when multiple units are paralleled. These high-power loads are designed for testing a wide range of EV products, including DC charging stations, car battery discharge, on-board charger power components, and other power electronics components.
With its high power capabilities, parallel control and dynamic synchronisation functions make this load ideal for automotive batteries, fuel cells and more.
Key Features
- CC, CR, CV & CP operation modes
- Up to 10 units master/slave parallel control
- Synchronous control in static and dynamic loads
- CZ mode for turn on capacitive load simulation
- Real-time power supply load transient response simulation & Vpk+/- measurement
- User programmable 255 sequential front panel input status
- Ultra-precision voltage & current measurement
- Timing & discharging measurement for batteries
- Short circuit simulation
- Smart fan control
- Full protection: OC (adjustable), OT, OP (adjustable) protection & OV warning, polarity reverse alarm
- Standard USB, optional Ethernet/LXI and GPIB interfaces
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Voltage | 0 - 600V |
| Current | 0 - 126A, 0 - 630A, 0 - 1,260A |
| Power | 0 - 18,000W |
| Minimum Operating Voltage | 14V@1260A |
| Protection |
Over current: Yes (settable) |
| Interface |
Ethernet / LXI: Optional |
| Operating Temperature | 0 - 40°C |
| Input Resistance (Load Off) | 1M Ω (typical) |
| Line Voltage | 100 - 240 VAC / 47 - 63Hz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
