7.001.906.118
7.001.906.118
Hummel
Inserts 6-pole with dip solder
7.001.906.118 - Inserts 6-pole with dip solder Also known as 7001906118. White. Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 7001906118 |
Manufacturer | Hummel |
Additional Description |
|
Colour | White |
Weight (kg) | 0.00246 |
Customs tariff number | 85366930 |
EAN code | 4033878500286 |
ETIM 7 | EC003557 |
Packaging Unit | 50 |
Characteristic of connection | Dip-solder (PCB) |
Number of poles | 6.0000 |
Insert | Socket |
Signal contact diameter (mm) | 2.0000 |
Minimum mating cycles | > 1000 |
Insulating body material | PA 6, PBT |
Number of signal contacts | 6.0000 |
Degree of protection | 3 |

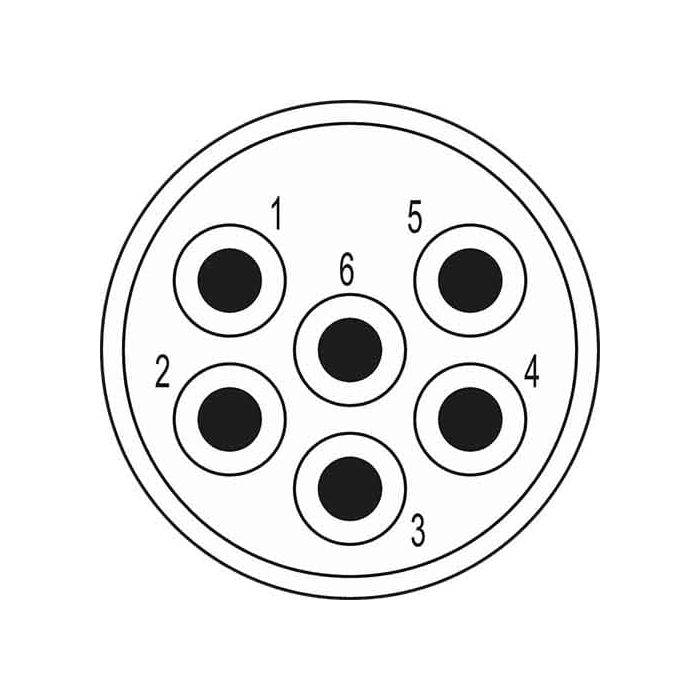

Pole picture | 6 |
Contact diameter | 2 mm |
Nominal current signal A | 20.0000 |
Nominal voltage at_degree of pollution 3 signal (V) | 300.0000 |
Test voltage signal (V) | 2500.0000 |
Insulation resistance signal (Ohm) | > 10^10 |
Max contact resistance signal (mOhm) | 3.0000 |
Max contact resistance power (mOhm) | 3.0000 |
Dip solder contacts length mm | 17.0000 |
Flammability | V-0 (UL 94) |
Temperature Range | -40°C to +125°C |
