Hummel 7.001.919.103 Inserts 19-pole with solder

7.001.919.103

7.001.919.103

Hummel

Inserts 19-pole with solder

7.001.919.103 - Inserts 19-pole with solder Also known as 7001919103. White. Minimum mating cycles : > 1000
In stock
£15.90
More Information
Attribute Value
Product Brand Name 7001919103
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Solder
  • Color contact insert : White
  • Contact-Ø signal [mm] : 1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Pin
  • Insulation resistance signal : > 10^6
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 100
  • Nominal current signal : 8
  • Number of contacts power : 3
  • Number of poles : 19

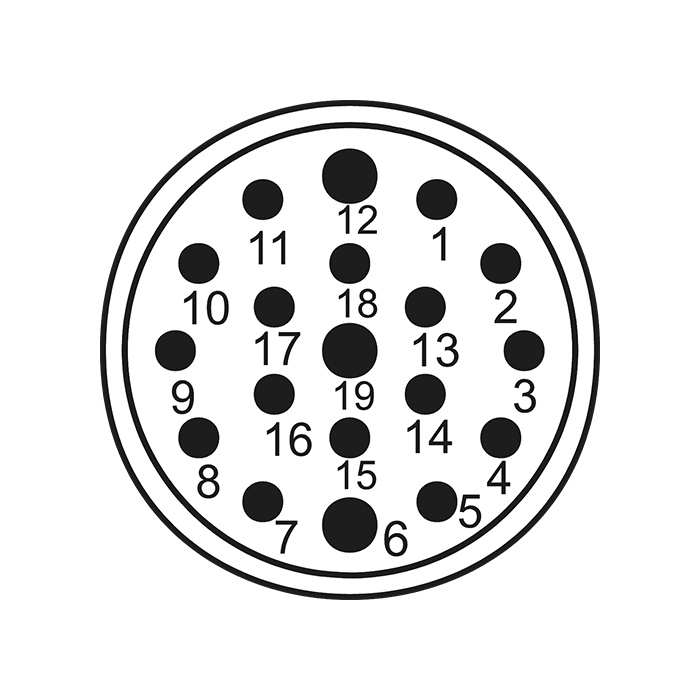

  • Pole picture : 19
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Colour White
Weight (kg) 0.00346
Customs tariff number 85366990
EAN code 4033878500651
ETIM 7 EC003557
Packaging Unit 25
Characteristic of connection Solder
Number of poles 19
Insert Pin
Signal contact diameter (mm) 1
Power contact diameter (mm) 1.5
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 16
Number of power contacts 3
Degree of protection 3
Pole picture 19
Contact diameter 1 mm│1.5 mm
Nominal current signal A 8
Nominal current power A 10
Nominal voltage at_degree of pollution 3 signal (V) 100
Nominal voltage at degree of pollution 3 power (V) 100
Test voltage signal (V) 1500
Test voltage power (V) 1500
Insulation resistance signal (Ohm) > 10^6
Insulation resistance power (Ohm) > 10^6
Max contact resistance signal (mOhm) 3
Max contact resistance power (mOhm) 3
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
