7.001.928.103
7.001.928.103
Hummel
Inserts 28-pole with solder
7.001.928.103 - Inserts 28-pole with solder Also known as 7001928103. White. Minimum mating cycles : > 50
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7001928103 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.0022 |
| Customs tariff number | 85369010 |
| EAN code | 4033878500804 |
| ETIM 7 | EC003557 |
| Packaging Unit | 60 |
| Characteristic of connection | Solder |
| Number of poles | 28 |
| Insert | Pin |
| Signal contact diameter (mm) | 1 |
| Minimum mating cycles | > 50 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 28 |
| Degree of protection | 3 |

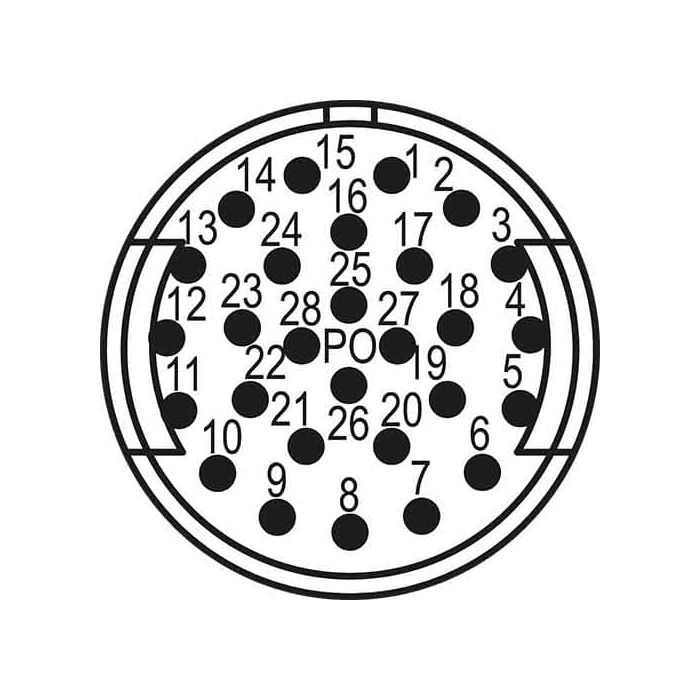

| Pole picture | 28 |
| Nominal current signal A | 8 |
| Nominal voltage at_degree of pollution 3 signal (V) | 150 |
| Test voltage signal (V) | 1500 |
| Insulation resistance data (Ohm) | - |
| Insulation resistance signal (Ohm) | > 10^12 |
| Insulation resistance power (Ohm) | - |
| Max contact resistance signal (mOhm) | 3 |
| Max contact resistance power (mOhm) | 3 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
