7.001.943.137
7.001.943.137
Hummel
Insert M16 4+3+PE with dip
7.001.943.137 - Insert M16 4+3+PE with dip Also known as 7001943137. . Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7001943137 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.05681 |
| Customs tariff number | 85366930 |
| EAN code | 4033878500859 |
| ETIM 7 | EC003557 |
| Packaging Unit | 50 |
| Body size | M16 |
| Characteristic of connection | Dip-solder (PCB) |
| Number of poles | 8.0000 |
| Insert | Pin |
| Signal contact diameter (mm) | 0.8 |
| Power contact diameter (mm) | 1.6 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 4.0000 |
| Number of power contacts | 3.0000 |
| Number of PE contacts | 1.0000 |
| Degree of protection | 3 |

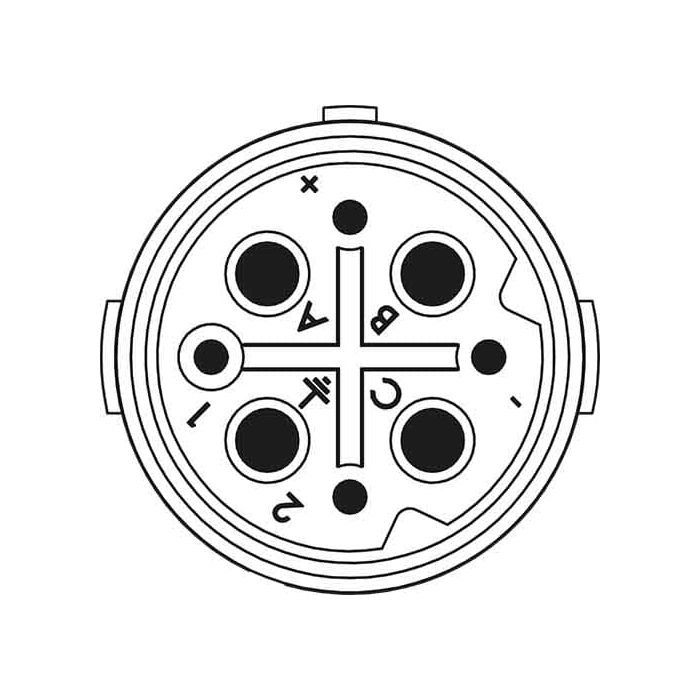

| Pole picture | 4 + 3 + PE |
| Contact diameter | 0.8 mm│1.6 mm |
| Nominal current signal A | 5.0000 |
| Nominal current power A | 16.0000 |
| Nominal voltage at_degree of pollution 3 signal (V) | 160.0000 |
| Nominal voltage at degree of pollution 3 power (V) | 320.0000 |
| Test voltage signal (V) | 1500.0000 |
| Test voltage power (V) | 2500.0000 |
| Insulation resistance signal (Ohm) | > 10^10 |
| Insulation resistance power (Ohm) | > 10^10 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Dip solder contacts length mm | 17.0000 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
