7.001.988.118
7.001.988.118
Hummel
Insert M16 with 18 contacts
7.001.988.118 - Insert M16 with 18 contacts Also known as 7001988118. . Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7001988118 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.00366 |
| Customs tariff number | 85366930 |
| EAN code | 4033878501016 |
| ETIM 7 | EC003557 |
| Packaging Unit | 50 |
| Body size | M16 |
| Characteristic of connection | Dip-solder (PCB) |
| Number of poles | 18.0000 |
| Insert | Socket |
| Signal contact diameter (mm) | 0.1 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 18.0000 |
| Degree of protection | 3 |

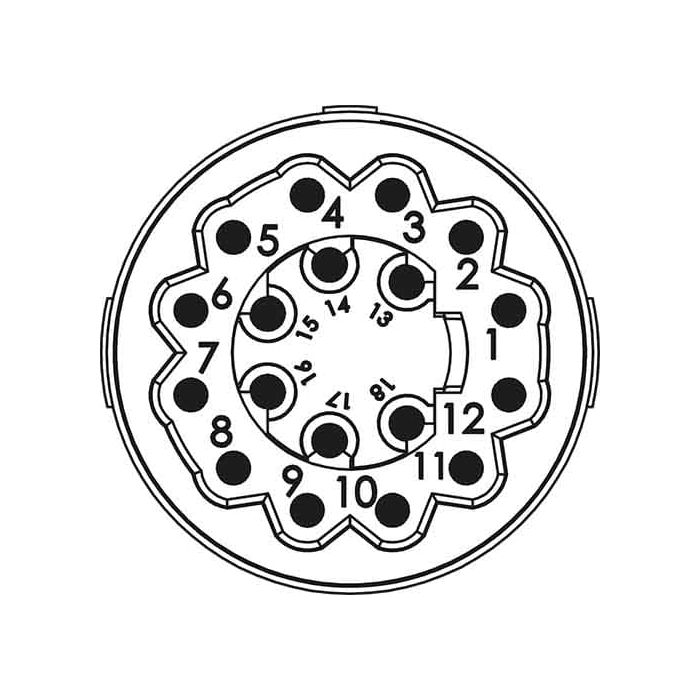

| Pole picture | 12 + 6 |
| Contact diameter | 0.1 mm |
| Nominal current signal A | 3.0000 |
| Nominal voltage at_degree of pollution 3 signal (V) | 24.0000 |
| Test voltage signal (V) | 1500.0000 |
| Insulation resistance signal (Ohm) | > 10^10 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Dip solder contacts length mm | 17.0000 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
