Hummel 7.001.988.127 Insert 18-pole M16

7.001.988.127

7.001.988.127

Hummel

Insert 18-pole M16

7.001.988.127 - Insert 18-pole M16 Also known as 7001988127. . Minimum mating cycles : > 1000
In stock
£41.20
More Information
Attribute Value
Product Brand Name 7001988127
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Dip-solder (PCB)
  • Color contact insert :
  • Contact-Ø signal [mm] : 0.1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] : 10
  • Flammability CE : V-0 (UL 94)
  • Insert : Pin
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 24
  • Nominal current signal : 3
  • Number of contacts power :
  • Number of poles : 18

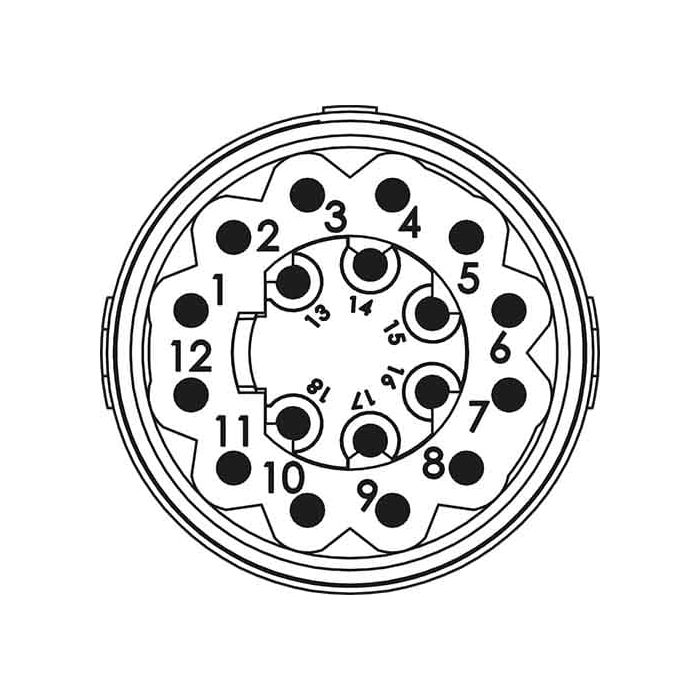

  • Pole picture : 12 + 6
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Weight (kg) 0.00366
Customs tariff number 85366930
EAN code 4033878501023
ETIM 7 EC003557
Packaging Unit 50
Body size M16
Characteristic of connection Dip-solder (PCB)
Number of poles 18
Insert Pin
Signal contact diameter (mm) 0.1
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 18
Degree of protection 3
Pole picture 12 + 6
Contact diameter 0.1 mm
Nominal current signal A 3
Nominal voltage at_degree of pollution 3 signal (V) 24
Test voltage signal (V) 1500
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Dip solder contacts length mm 10
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
