7.002.912.108
7.002.912.108
Hummel
Inserts 12-pole with dip solde
7.002.912.108 - Inserts 12-pole with dip solde Also known as 7002912108. White. Minimum mating cycles : > 1000
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7002912108 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.00246 |
| Customs tariff number | 85366930 |
| EAN code | 4033878501078 |
| ETIM 7 | EC003557 |
| Packaging Unit | 5 |
| Characteristic of connection | Dip-solder (PCB) |
| Number of poles | 12 |
| Insert | Socket |
| Signal contact diameter (mm) | 1 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 12 |
| Degree of protection | 3 |

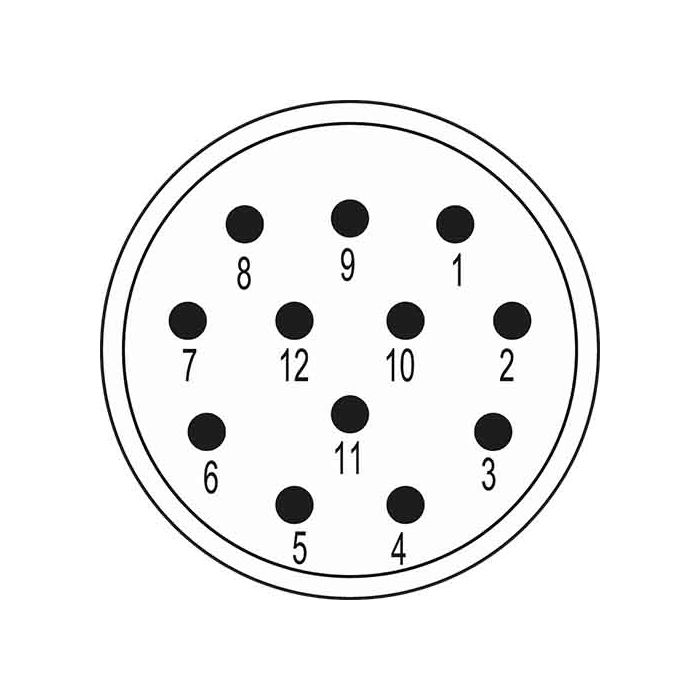

| Pole picture | 12 |
| Contact diameter | 1 mm |
| Nominal current signal A | 8 |
| Nominal voltage at_degree of pollution 3 signal (V) | 200 |
| Test voltage signal (V) | 2500 |
| Insulation resistance signal (Ohm) | > 10^10 |
| Max contact resistance signal (mOhm) | 3 |
| Max contact resistance power (mOhm) | 3 |
| Dip solder contacts length mm | 10 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
