Hummel 7.003.910.102 Insert 10-poles for sockets 1m

7.003.910.102

7.003.910.102

Hummel

Insert 10-poles for sockets 1m

7.003.910.102 - Insert 10-poles for sockets 1m Also known as 7003910102. White. Minimum mating cycles : > 1000
In stock
£3.10
More Information
Attribute Value
Product Brand Name 7003910102
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : White
  • Contact-Ø signal [mm] : 1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^6
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 160
  • Nominal current signal : 8
  • Number of contacts power :
  • Number of poles : 10

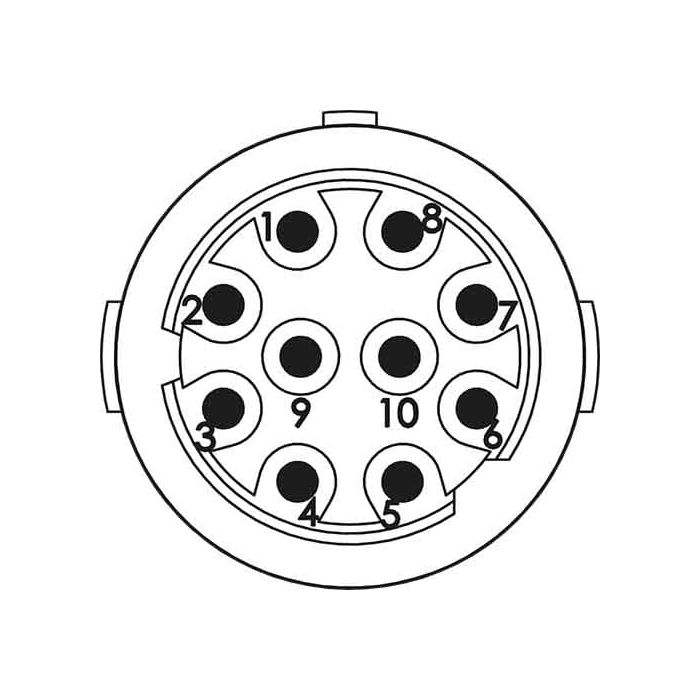

  • Pole picture : 10
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Colour White
Weight (kg) 0.0025
Customs tariff number 85472000
EAN code 4033878501344
ETIM 7 EC003557
Packaging Unit 100
Characteristic of connection Crimp
Number of poles 10
Insert Socket
Signal contact diameter (mm) 1
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 10
Degree of protection 3
Suitable power contacts 7010981002
Pole picture 10
Contact diameter 1 mm
Nominal current signal A 8
Nominal voltage at_degree of pollution 3 signal (V) 160
Test voltage signal (V) 1500
Insulation resistance signal (Ohm) > 10^6
Max contact resistance signal (mOhm) 3
Suitable crimping tool 7000900904
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
