Hummel 7.003.912.102 Insert12-poles for sockets 1mm

7.003.912.102

7.003.912.102

Hummel

Insert12-poles for sockets 1mm

7.003.912.102 - Insert12-poles for sockets 1mm Also known as 7003912102. White. Minimum mating cycles : > 1000
In stock
£2.60
More Information
Attribute Value
Product Brand Name 7003912102
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : White
  • Contact-Ø signal [mm] : 1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 200
  • Nominal current signal : 8
  • Number of contacts power :
  • Number of poles : 12

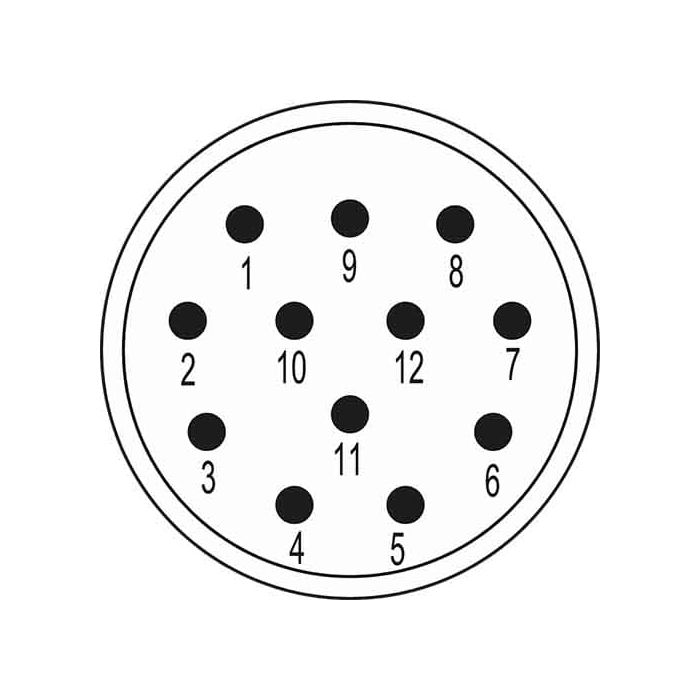

  • Pole picture : 12
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 2500
Colour White
Weight (kg) 0.0041
Customs tariff number 85472000
EAN code 4033878501368
ETIM 7 EC003557
Packaging Unit 100
Characteristic of connection Crimp
Number of poles 12
Insert Socket
Signal contact diameter (mm) 1
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 12
Degree of protection 3
Suitable signal contacts 7010901002, 7010901012, 7010901022
Pole picture 12
Contact diameter 1 mm
Nominal current signal A 8
Nominal voltage at_degree of pollution 3 signal (V) 200
Test voltage signal (V) 2500
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Max contact resistance power (mOhm) 3
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
