7.003.917.101
7.003.917.101
Hummel
Insert17-poles for pins 1mm
7.003.917.101 - Insert17-poles for pins 1mm Also known as 7003917101. White. Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7003917101 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.00186 |
| Customs tariff number | 85472000 |
| EAN code | 4033878501412 |
| ETIM 7 | EC003557 |
| Packaging Unit | 100 |
| Characteristic of connection | Crimp |
| Number of poles | 17.0000 |
| Insert | Pin |
| Signal contact diameter (mm) | 1.0000 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 17.0000 |
| Degree of protection | 3 |
| Suitable signal contacts | 7010901001, 7010901021, 7010901031 |

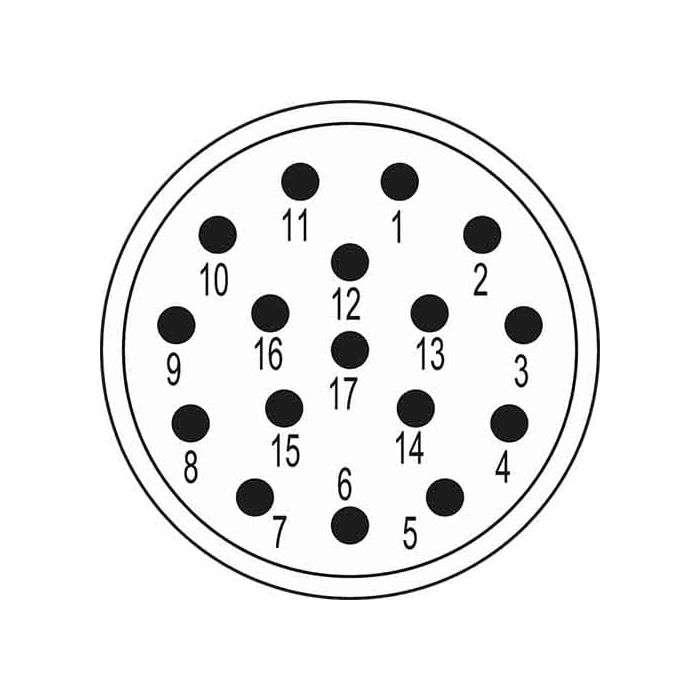

| Pole picture | 17 |
| Contact diameter | 1 mm |
| Nominal current signal A | 8.0000 |
| Nominal voltage at_degree of pollution 3 signal (V) | 160.0000 |
| Test voltage signal (V) | 1500.0000 |
| Insulation resistance signal (Ohm) | > 10^6 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Max contact resistance power (mOhm) | 3.0000 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
