Hummel
Insert M23 Profinet
7.003.920.101 - Insert M23 Profinet Also known as 7003920101. White. Minimum mating cycles : > 1000
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7003920101 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.06002 |
| Customs tariff number | 85472000 |
| EAN code | 4033878501474 |
| ETIM 7 | EC003557 |
| Packaging Unit | 1 |
| Body size | M23 |
| Characteristic of connection | Crimp |
| Number of poles | 20 |
| Insert | Pin |
| Signal contact diameter (mm) | 1 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 12 |
| Degree of protection | 3 |
| Suitable data contacts | 7010980641 |
| Suitable signal contacts | 7010901045, 7010901049 |

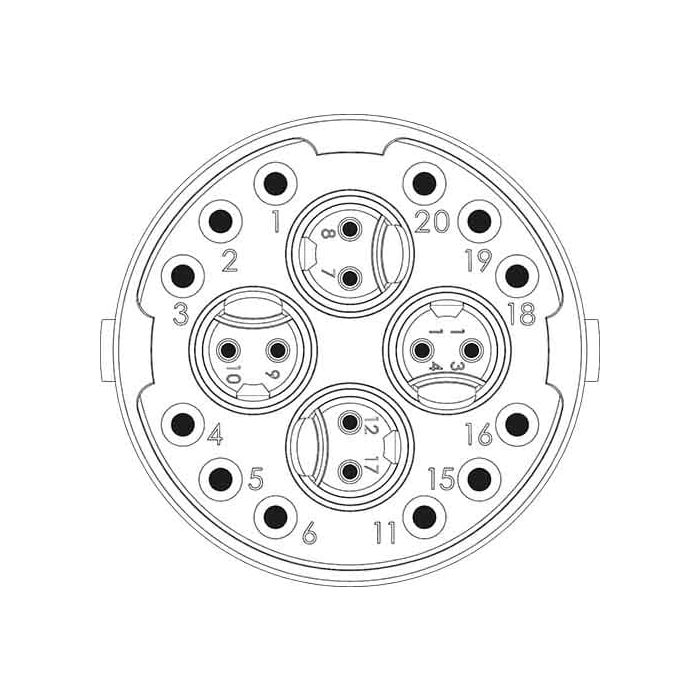

| Pole picture | 4 x 2 + 12 |
| Nominal current signal A | 8 |
| Nominal voltage at_degree of pollution 3 signal (V) | 160 |
| Test voltage signal (V) | 1500 |
| Insulation resistance data (Ohm) | > 10^6 |
| Insulation resistance signal (Ohm) | > 10^6 |
| Max contact resistance data (mOhm) | 3 |
| Max contact resistance signal (mOhm) | 3 |
| Data contact diameter (mm) | 0.6 |
| Number of data contacts | 4 x 2 |
| Data terminal cross section | 0.08 – 0.34 mm² |
| Nominal current data (A) | 2 |
| Test voltage data (V) | 500 |
| Flammability | V-0 (UL 94) |
| Nominal voltage at degree of pollution 3 data (V) | 60 |
| Temperature Range | -40°C to +125°C |
