Hummel 7.003.943.102 Insert 4+3+PE M16 for sockets

7.003.943.102

7.003.943.102

Hummel

Insert 4+3+PE M16 for sockets

7.003.943.102 - Insert 4+3+PE M16 for sockets Also known as 7003943102. White. Minimum mating cycles : > 1000
In stock
£6.50
More Information
Attribute Value
Product Brand Name 7003943102
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : White
  • Contact-Ø signal [mm] : 0.8
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 160
  • Nominal current signal : 5
  • Number of contacts power : 4
  • Number of poles : 8

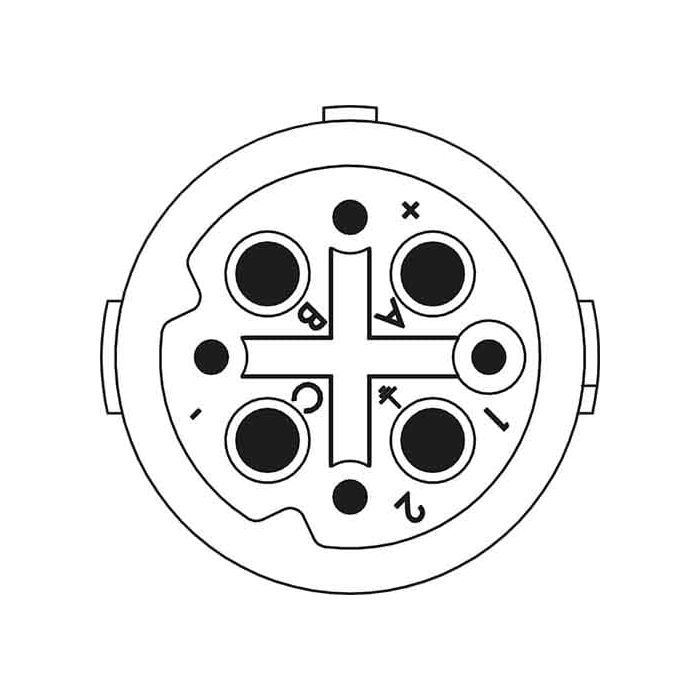

  • Pole picture : 4 + 3 + PE
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Colour White
Weight (kg) 0.0023
Customs tariff number 85472000
EAN code 4033878501528
ETIM 7 EC003557
Packaging Unit 5
Body size M16
Characteristic of connection Crimp
Number of poles 8
Insert Socket
Signal contact diameter (mm) 0.8
Power contact diameter (mm) 1.6
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 4
Number of power contacts 4
Number of PE contacts 1
Degree of protection 3
Pole picture 4 + 3 + PE
Contact diameter 0.8 mm│1.6 mm
Power terminal cross section 0.34 – 1,5 mm²
Nominal current signal A 5
Nominal current power A 16
Nominal voltage at_degree of pollution 3 signal (V) 160
Nominal voltage at degree of pollution 3 power (V) 320
Test voltage signal (V) 1500
Test voltage power (V) 2500
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Suitable crimping tool 7000900904
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
