7.003.961.102
7.003.961.102
Hummel

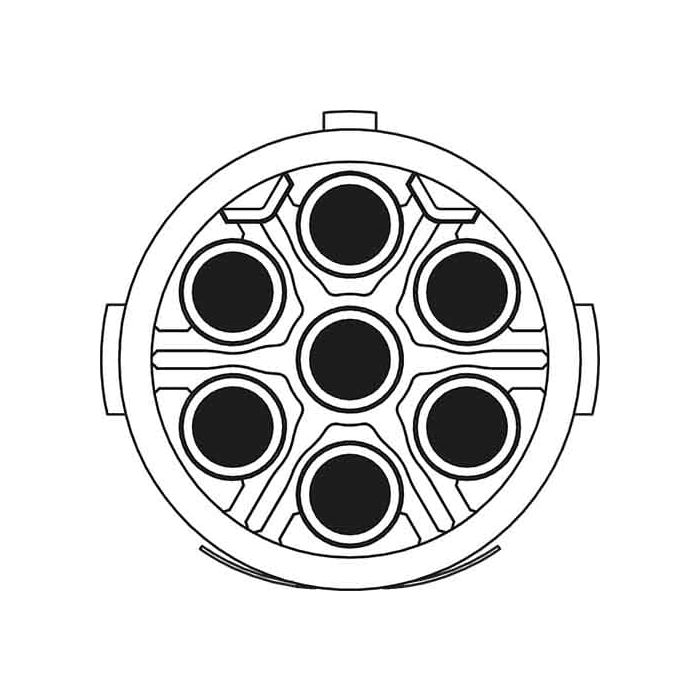

Insert M16, 6+PE for sockets
7.003.961.102 - Insert M16, 6+PE for sockets Also known as 7003961102. White. Minimum mating cycles : > 1000
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7003961102 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | White |
| Weight (kg) | 0.003 |
| Customs tariff number | 85472000 |
| ETIM 7 | EC003557 |
| Packaging Unit | 10 |
| Body size | M16 |
| Characteristic of connection | Crimp |
| Number of poles | 7 |
| Insert | Socket |
| Signal contact diameter (mm) | 1.25 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of power contacts | 6 |
| Number of PE contacts | 1 |
| Degree of protection | 3 |
| Pole picture | 6 + PE |
| Contact diameter | 1.25 mm |
| Nominal current signal A | 16 |
| Nominal voltage at degree of pollution 3 power (V) | 600 |
| Test voltage signal (V) | 2500 |
| Insulation resistance signal (Ohm) | > 10^10 |
| Max contact resistance signal (mOhm) | 3 |
| Suitable crimping tool | 7000900904 |
| Flammability | V-0 (UL 94) |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
