Hummel 7.003.983.102 Insert 3-poles for sockets 2mm

7.003.983.102

7.003.983.102

Hummel

Insert 3-poles for sockets 2mm

7.003.983.102 - Insert 3-poles for sockets 2mm Also known as 7003983102. White. Minimum mating cycles : > 1000
In stock
£2.60
More Information
Attribute Value
Product Brand Name 7003983102
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : White
  • Contact-Ø signal [mm] : 2
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal :
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal :
  • Nominal voltage at degree of pollution 3 signal :
  • Nominal current signal :
  • Number of contacts power : 3
  • Number of poles : 3

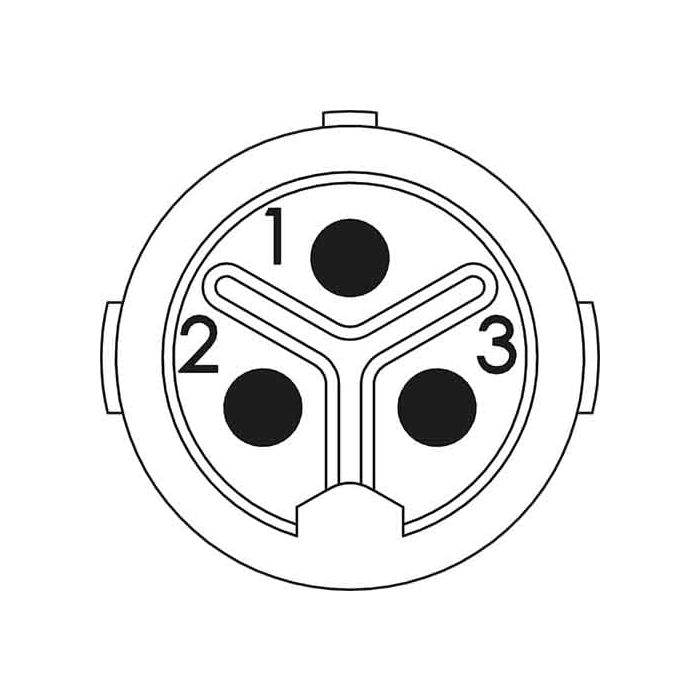

  • Pole picture : 3
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 2500
Colour White
Weight (kg) 0.002
Customs tariff number 85472000
EAN code 4033878501573
ETIM 7 EC003557
Packaging Unit 100
Characteristic of connection Crimp
Number of poles 3
Insert Socket
Signal contact diameter (mm) 2
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of power contacts 3
Degree of protection 3
Suitable power contacts 7010982002
Pole picture 3
Contact diameter 2 mm
Nominal current power A 20
Nominal voltage at degree of pollution 3 power (V) 400
Test voltage signal (V) 2500
Insulation resistance power (Ohm) > 10^10
Max contact resistance power (mOhm) 3
Suitable crimping tool 7000900904
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
