Hummel 7.003.988.102 Insert 12+6 for the sockets,

7.003.988.102

7.003.988.102

Hummel

Insert 12+6 for the sockets,

7.003.988.102 - Insert 12+6 for the sockets, Also known as 7003988102. White. Minimum mating cycles : > 1000
In stock
£6.70
More Information
Attribute Value
Product Brand Name 7003988102
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : White
  • Contact-Ø signal [mm] : 0.8
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 1500
  • Nominal current signal : 3
  • Number of contacts power :
  • Number of poles : 18

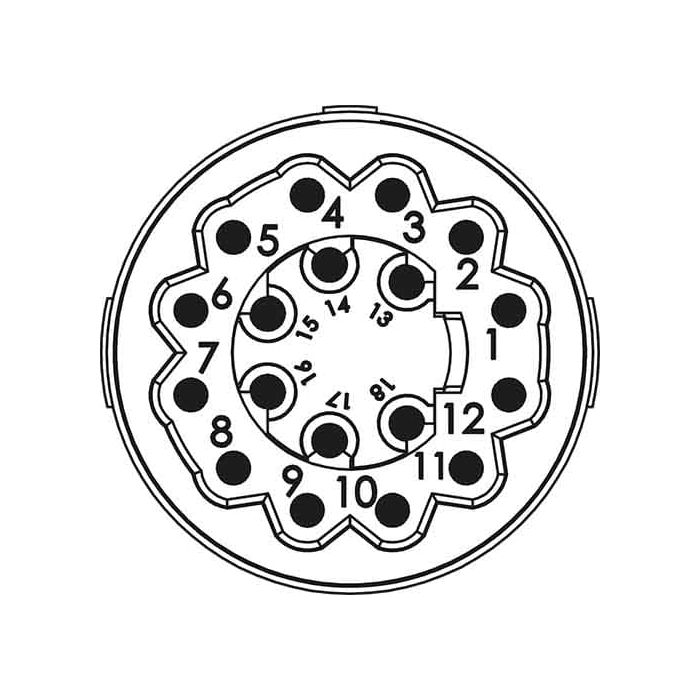

  • Pole picture : 12 + 6
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Colour White
Weight (kg) 0.00093
Customs tariff number 85472000
EAN code 4033878501610
ETIM 7 EC003557
Packaging Unit 10
Characteristic of connection Crimp
Number of poles 18
Insert Socket
Signal contact diameter (mm) 0.8
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 18
Degree of protection 3
Suitable power contacts 7010980802
Pole picture 12 + 6
Contact diameter 0.8 mm
Nominal current signal A 3
Nominal voltage at_degree of pollution 3 signal (V) 1500
Test voltage signal (V) 1500
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Suitable crimping tool 7000900904
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
