7.010.901.045
7.010.901.045
Hummel

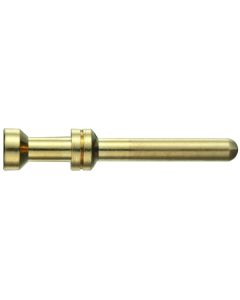

M23 Fast Ethernet PoE contacts
7.010.901.045 - M23 Fast Ethernet PoE contacts Also known as 7010901045. . Minimum mating cycles : > 1000
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7010901045 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 23.5 |
| Weight (kg) | 0.00037 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502044 |
| ETIM 7 | EC000796 |
| Packaging Unit | 100 |
| Body size | M23 |
| Characteristic of connection | Crimp |
| Insert | Pin |
| Signal contact diameter (mm) | 1 |
| Minimum mating cycles | > 1000 |
| Crimp range | 0.75 – 1.5 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact diameter | 1 mm |
| Crimp contact | Crimp pin signal 1 mm machined |
| Contact diameter crimping range (mm) | 2.4 |
| Material contact | Copper-zinc alloy |
| Cross section | 0.75 – 1.5 mm² |
| Crimp tool setting 1 (mm) | 0.8 |
| Crimp tool setting 2 mm | 0.85 |
| Crimp tool setting 3 (mm) | 0.95 |
| AWG | 16 – 18 |
| Suitable crimping tool | 7000900907 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
