Name: 7.010.942.002
Brand: Hummel
SKU: 7.010.942.002
Price: 1.76 GBP
Availability: OutOfStock

7.010.942.002

Hummel

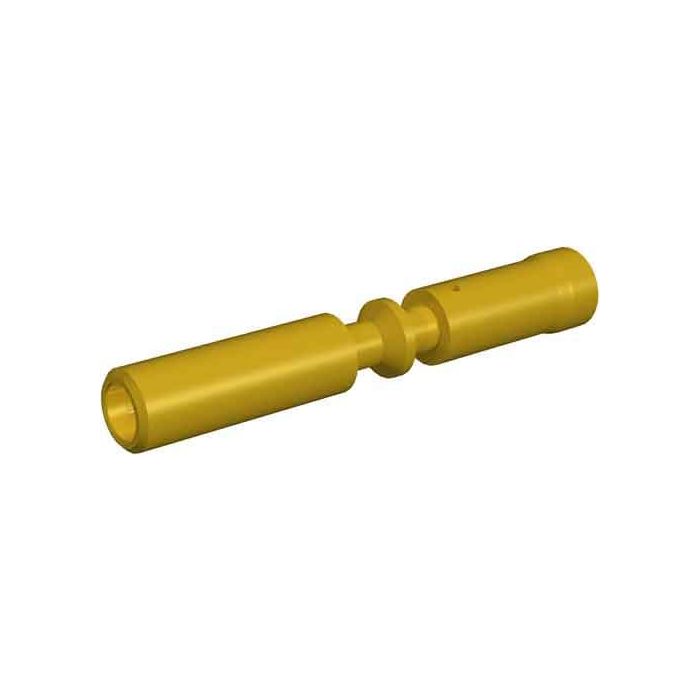

7.010.942.002 - Crimp socket 2mm, machined Also known as 7010942002. . Minimum mating cycles : > 1000

More Information
Attribute	Value
Product Brand Name	7010942002
Manufacturer	Hummel
Additional Description	Characteristic of connection : Crimp Color contact insert : Contact-Ø signal [mm] : Degree of Protection : Dip solder contacts length [mm] : Flammability CE : Insert : Socket Insulation resistance signal : Material insulating body : Max. contact resistance signal : Nominal voltage at degree of pollution 3 signal : Nominal current signal : Number of contacts power : Number of poles : Pole picture : Temperature range : Test voltage signal [v-] :
Length (mm)	23.6
Weight (kg)	0.00093
Customs tariff number	85366990
EAN code	4033878502204
ETIM 7	EC000796
Packaging Unit	100
Characteristic of connection	Crimp
Insert	Socket
Power contact diameter (mm)	2
Minimum mating cycles	> 1000
Crimp range	0.75 – 2.5 mm²
Material contact surface	nickel, gold plated (0.25 µm)
Contact diameter	2 mm
Crimp contact	Crimp socket power 2 mm machined
Contact diameter crimping range (mm)	3.7
Material contact	Copper-zinc alloy
Cross section	0.75 – 2.5 mm²
Crimp tool setting 1 (mm)	1.3
Crimp tool setting 2 mm	1.4
Crimp tool setting 3 (mm)	1.55
Crimp tool setting 4 (mm)	1.7
AWG	14 – 18
Suitable crimping tool	7000900901
