7.010.981.212
7.010.981.212
Hummel

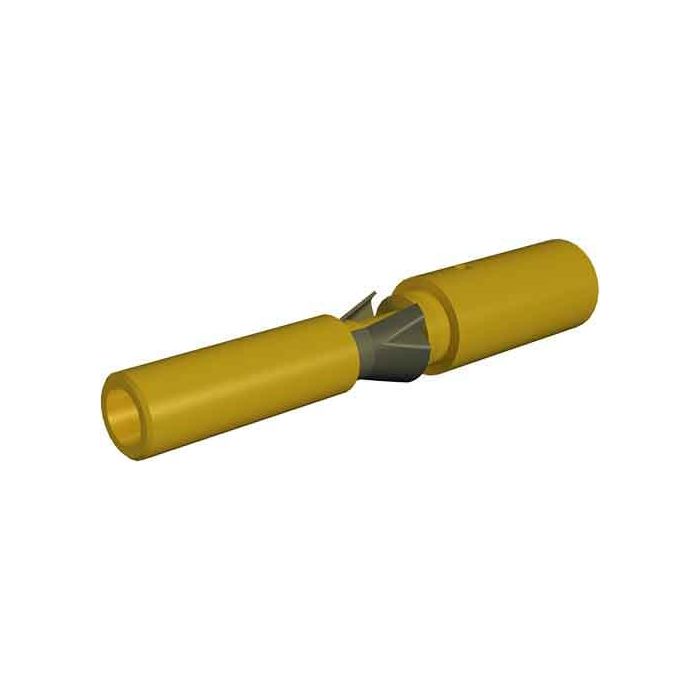

Crimp sockets 1,25mm for M16,
7.010.981.212 - Crimp sockets 1,25mm for M16, Also known as 7010981212. . Minimum mating cycles : > 1000
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7010981212 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 14.6 |
| Weight (kg) | 0.00035 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502365 |
| ETIM 7 | EC000796 |
| Packaging Unit | 100 |
| Body size | M16 |
| Characteristic of connection | Crimp |
| Insert | Socket |
| Signal contact diameter (mm) | 1.25 |
| Minimum mating cycles | > 1000 |
| Crimp range | 0.34 – 1.5 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact diameter | 1.25 mm |
| Crimp contact | Crimp socket signal 1,25 mm machined |
| Contact diameter crimping range (mm) | 2.8 |
| Material contact | Copper-zinc alloy |
| Cross section | 0.34 – 1.5 mm² |
| Crimp tool setting 1 (mm) | 1 |
| Crimp tool setting 2 mm | 1.04 |
| Crimp tool setting 3 (mm) | 1.1 |
| Crimp tool setting 4 (mm) | 1.2 |
| Crimp tool setting 5 (mm) | 1.3 |
| AWG | 16 – 22 |
| Suitable crimping tool | 7000900904 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
