7.010.982.002
7.010.982.002
Hummel

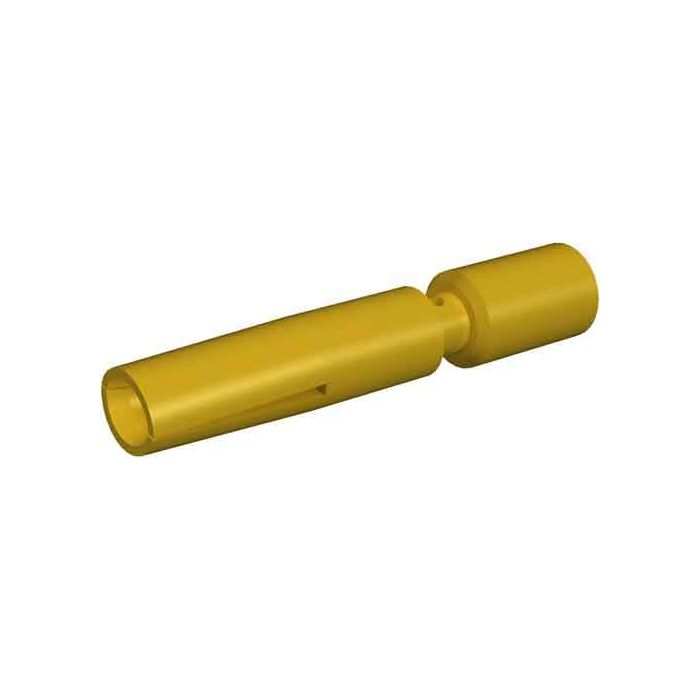

Crimp socket 2mm, machined
7.010.982.002 - Crimp socket 2mm, machined Also known as 7010982002. . Minimum mating cycles : > 1000
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 7010982002 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 17.3 |
| Weight (kg) | 0.00066 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502402 |
| ETIM 7 | EC000796 |
| Packaging Unit | 100 |
| Characteristic of connection | Crimp |
| Insert | Socket |
| Signal contact diameter (mm) | 2 |
| Minimum mating cycles | > 1000 |
| Crimp range | 1 – 2.5 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact diameter | 2 mm |
| Crimp contact | Crimp socket signal 2 mm machined |
| Contact diameter crimping range (mm) | 3.3 |
| Material contact | Copper-zinc alloy |
| Cross section | 1 – 2.5 mm² |
| Crimp tool setting 1 (mm) | 1.35 |
| Crimp tool setting 2 mm | 1.45 |
| Crimp tool setting 3 (mm) | 1.6 |
| AWG | 14 – 17 |
| Suitable crimping tool | 7000900904 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
