7.015.953.611
7.015.953.611
Hummel

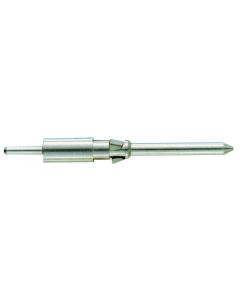

Crimp pin 3.6 mm, machined
7.015.953.611 - Crimp pin 3.6 mm, machined Also known as 7015953611. . Minimum mating cycles : > 500
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7015953611 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 47.0000 |
| Weight (kg) | 0.00742 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502594 |
| ETIM 7 | EC000796 |
| Packaging Unit | 25 |
| Characteristic of connection | Crimp |
| Insert | Pin |
| Power contact diameter (mm) | 3.6 |
| Minimum mating cycles | > 500 |
| Crimp range | 6 – 6 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact diameter | 3.6 mm |
| Crimp contact | Crimp pin power 3,6 mm machined |
| Contact diameter crimping range (mm) | 6.9 |
| Material contact | Copper-zinc alloy |
| Cross section | 6 – 6 mm² |
| Suitable crimping tool | 7000900919, 7000900920, 7010900153 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
