Hummel

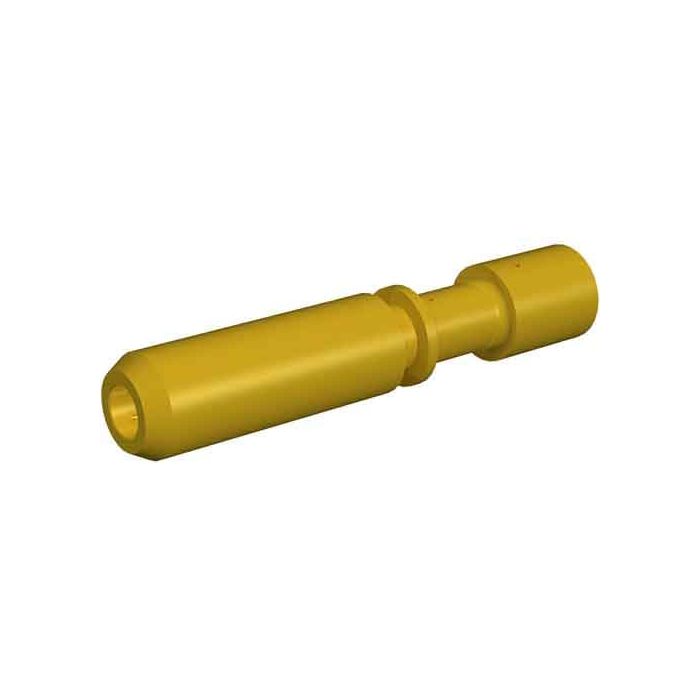

Crimp socket 3.6 mm, machined
7.015.953.622 - Crimp socket 3.6 mm, machined Also known as 7015953622. . Minimum mating cycles : > 500
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7015953622 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 42.2 |
| Weight (kg) | 0.0085 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502624 |
| ETIM 7 | EC000796 |
| Packaging Unit | 25 |
| Characteristic of connection | Crimp |
| Insert | Socket |
| Power contact diameter (mm) | 3.6 |
| Minimum mating cycles | > 500 |
| Crimp range | 10 – 10 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Contact diameter | 3.6 mm |
| Crimp contact | Crimp socket power 3,6 mm machined |
| Contact diameter crimping range (mm) | 7.9 |
| Material contact | Copper-zinc alloy |
| Cross section | 10 – 10 mm² |
| AWG | 8 |
| Suitable crimping tool | 7000900919, 7000900920, 7010900153 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
