Hummel

Insert 4+3+PE pins

7.053.908.101 - Insert 4+3+PE pins Also known as 7053908101. DESINA orange. Minimum mating cycles : > 1000
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 7053908101
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Crimp
  • Color contact insert : DESINA orange
  • Contact-Ø signal [mm] : 0.8
  • Degree of Protection : 3
  • Dip solder contacts length [mm] :
  • Flammability CE : V-0 (UL 94)
  • Insert : Pin
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 300
  • Nominal current signal : 5
  • Number of contacts power : 4
  • Number of poles : 8

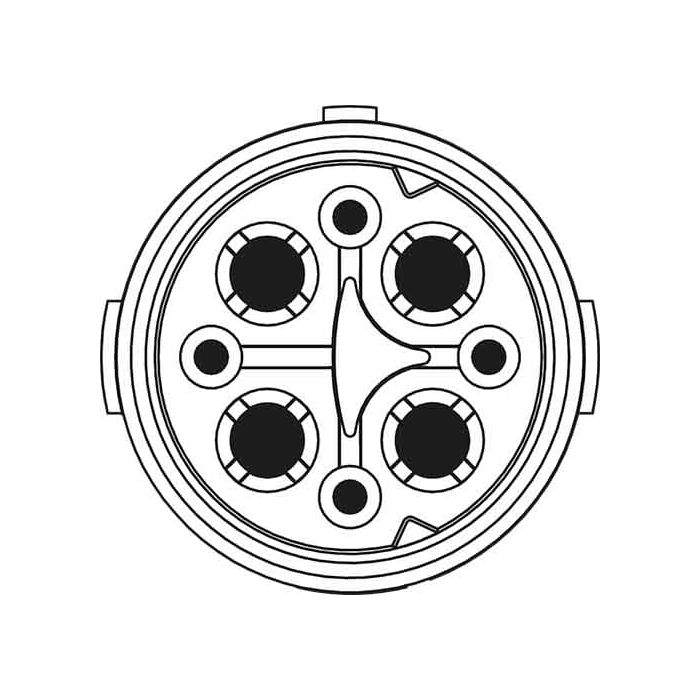

  • Pole picture : 4 + 3 + PE
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 1500
Colour DESINA orange
Weight (kg) 0.05481
Customs tariff number 85472000
EAN code 4033878502679
ETIM 7 EC003557
Packaging Unit 10
Characteristic of connection Crimp
Number of poles 8.0000
Insert Pin
Signal contact diameter (mm) 0.8
Power contact diameter (mm) 1.25
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of signal contacts 4.0000
Number of power contacts 4.0000
Number of PE contacts 1.0000
Degree of protection 3
Pole picture 4 + 3 + PE
Contact diameter 0.8 mm│1.25 mm
Power terminal cross section 0.34 – 1,5 mm²
Nominal current signal A 5.0000
Nominal current power A 16.0000
Nominal voltage at_degree of pollution 3 signal (V) 300.0000
Nominal voltage at degree of pollution 3 power (V) 600.0000
Test voltage signal (V) 1500.0000
Test voltage power (V) 2500.0000
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3.0000
Suitable crimping tool 7000900904
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
