Insert 4 + 4 + 3 + PE, hybrid pins M23 size 1
7.084.944.101 - Insert 4 + 4 + 3 + PE, hybrid pins M23 size 1 Also known as 7084944101. Blue. Minimum mating cycles : > 1000
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7084944101 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | Blue |
| Weight (kg) | 0.00837 |
| Customs tariff number | 85472000 |
| ETIM 7 | EC003557 |
| Packaging Unit | 10 |
| Body size | M23 |
| Characteristic of connection | Crimp |
| Number of poles | 12.0000 |
| Insert | Pin |
| Signal contact diameter (mm) | 1.0000 |
| Power contact diameter (mm) | 2.0000 |
| Minimum mating cycles | > 1000 |
| Insulating body material | PA 6, PBT |
| Number of signal contacts | 4.0000 |
| Number of power contacts | 3.0000 |
| Number of PE contacts | 1.0000 |
| Degree of protection | 3 |
| Suitable data contacts | 7010980641 |
| Suitable signal contacts | 7010941001, 7010941021 |
| Suitable power contacts | 7010942001, 7010942011 |

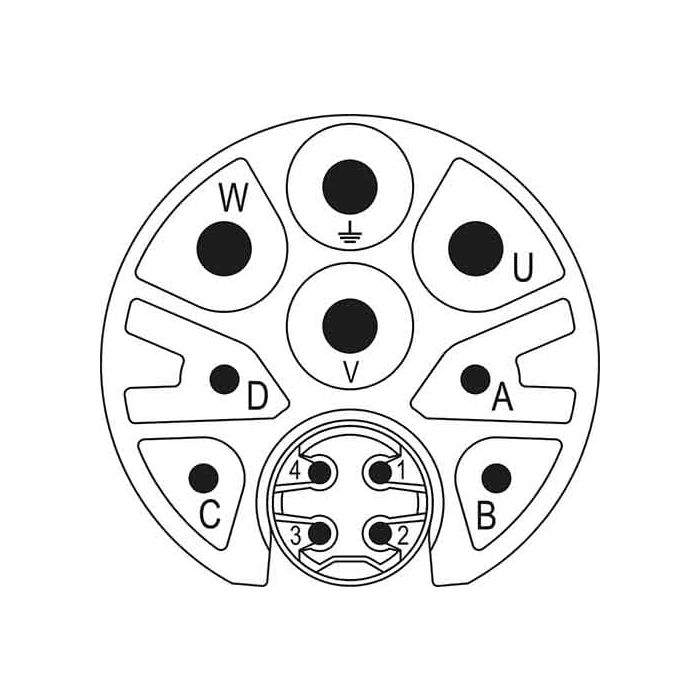

| Pole picture | 4 + 4 + 3 + PE |
| Suitable PE / FE contacts | 7010942002, 7010942012 |
| Contact diameter | 0.6 mm│1 mm│2 mm |
| Signal terminal cross section | 1.5 – 1.5 mm² |
| Power terminal cross section | 0.75 – 4 mm² |
| Nominal current signal A | 8.0000 |
| Nominal current power A | 28.0000 |
| Nominal voltage at_degree of pollution 3 signal (V) | 300.0000 |
| Nominal voltage at degree of pollution 3 power (V) | 600.0000 |
| Test voltage signal (V) | 2500.0000 |
| Test voltage power (V) | 4000.0000 |
| Insulation resistance data (Ohm) | > 10^6 |
| Insulation resistance signal (Ohm) | > 10^10 |
| Insulation resistance power (Ohm) | > 10^13 |
| Max contact resistance data (mOhm) | 3.0000 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Max contact resistance power (mOhm) | 3.0000 |
| Data contact diameter (mm) | 0.6 |
| Color ethernet insert | white |
| Material ethernet insert | PBT |
| Number of data contacts | 4 |
| Data terminal cross section | 0.08 – 0.34 mm² |
| Nominal current data (A) | 2.0000 |
| Test voltage data (V) | 500.0000 |
| Flammability | V-0 (UL 94) |
| suitable housing panel connector | 7601000000, 7605000000, 7626000000, 7639000000, 7639100000, 7641000000, 7645000000, 7651000000, 7653500000, 7653600000, 7661000000, 7681500000, 7681600000, 7683500000, 7683600000 |
| suitable housing cable connector | 7550500000, 7550600000, 7556500000, 7556600000 |
| suitable housing coupler connector | 7560500000, 7560600000 |
| Nominal voltage at degree of pollution 3 data (V) | 60.0000 |
| Temperature Range | -40°C to +125°C |
