7.105.000.000
7.105.000.000
Hummel

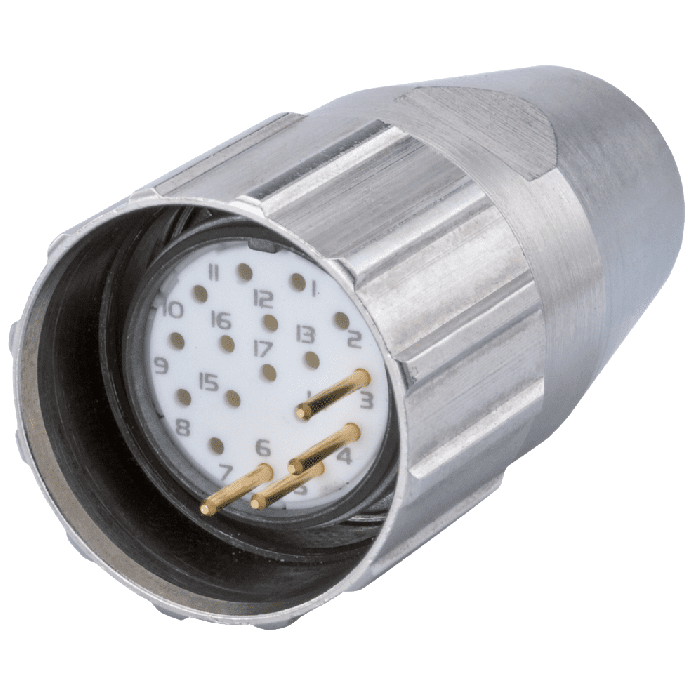

M23 Signal dead end connector housing
M23 Signal dead end connector housing from Hummel. Also known as 7105000000. The body material is brass. Die Casting. Protection class
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7105000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | white |
| Weight (kg) | 0.1029 |
| Customs tariff number | 85366990 |
| EAN code | 4033878502853 |
| ETIM 7 | EC002314 |
| Body size | M23 |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Insulating body material | PBT |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Material seals / O-rings | NBR |
| Usage | Signal |
| Body size | M23 |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
