Hummel

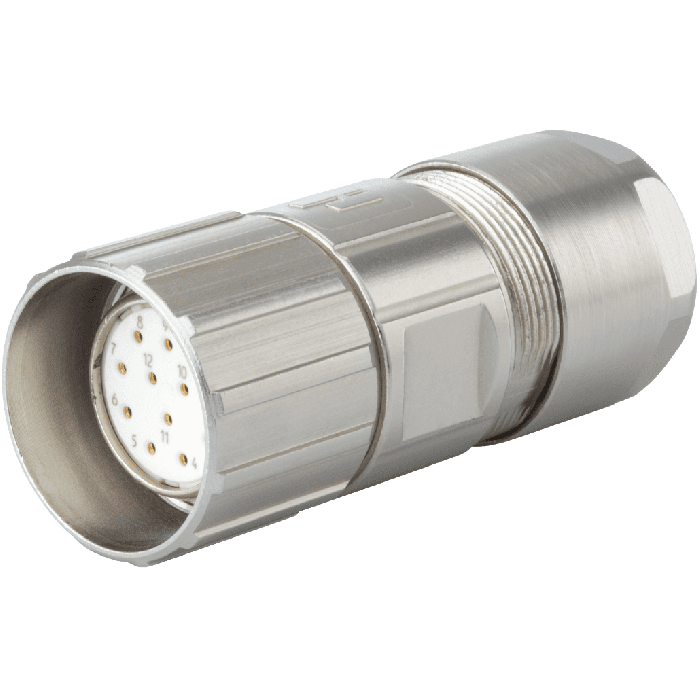

M23 Signal cable connector housing
M23 Signal cable connector housing from Hummel. Also known as 7106600000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7106600000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/6Y-zsX-obwM |
| Length (mm) | 64.7 |
| Weight (kg) | 0.07464 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878502884 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Cable |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Coding | - |
| Insert | Socket |
| Internal thread - plug in side | M23 x 1 |
| Knurled nut diameter - plug in side (mm) | 27.2 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | shielded |
| Material seals / O-rings | NBR |
| Panel hole (mm) | - |
| Drill form (mm) | - |
| Wall thickness (mm) | - |
| Flange (mm) | - |
| Hole diameter (mm) | - |
| Cable diameter (mm) | 11 - 17 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Cable |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
