Hummel

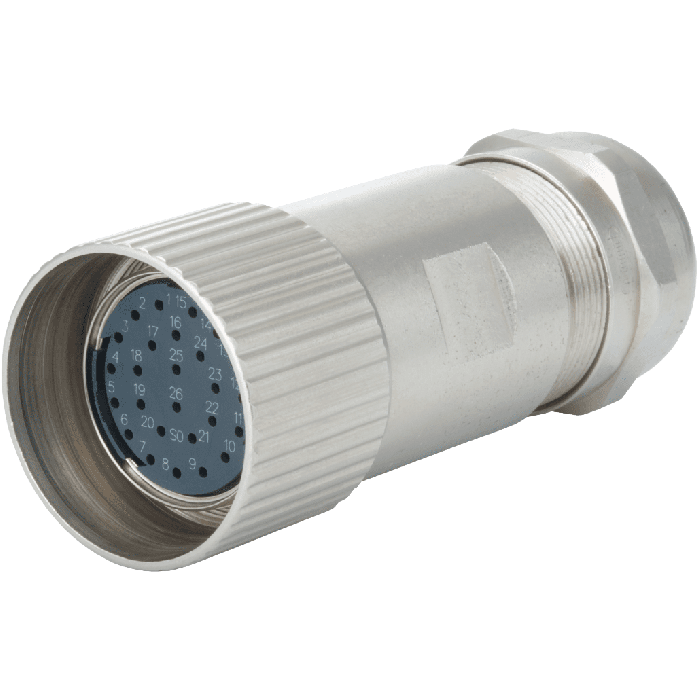

M27 Signal cable connector housing

M27 Signal cable connector housing from Hummel. Also known as 7110600000. The body material is Copper-Zinc alloy. Protection class IP 67
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 7110600000
Manufacturer Hummel
Additional Description
  • Cable Diameter [mm] : 11- 17
  • Housing Type : Cable
  • Internal thread plug-in side : M27 x 1
  • Knurled nut-⌀ plug-in side [mm]: 30
  • Locking type : Screw connection
  • Material housing : Nickel
  • Material seals/o-rings : NBR
  • Protection class : IP 67
  • Shield : unshielded
  • Suitable contact inserts :
  • Temperature range : -40° C to +125° C
  • Wrench size (SW1/SW2) : 27/25
Length (mm) 74.0000
Weight (kg) 0.10449
Further information Housing without contact inserts. Electrical data depend on the contact insert
Customs tariff number 85366990
EAN code 4033878502914
ETIM 7 EC003556
Body size M27
Housing type Cable
Material housing Copper-Zinc alloy
Material housing surface Nickel
Coding -
Insert Pin
External thread (AG) -
External thread - plug in side -
Internal thread - plug in side M27 x 1
Knurled nut diameter - plug in side (mm) 30.0000
Twilock / Twilock-S -
Degree of protection 3
Locking type Screw connection
Shield unshielded
Seal type O-Ring
Material seals / O-rings NBR
Panel hole (mm) -
Drill form (mm) -
Wall thickness (mm) -
Flange (mm) -
Hole diameter (mm) -
Cable diameter (mm) 11 - 17
Wrench size SW1 / SW2 (mm) 27/25
Protection class IP 67
Usage Signal
Body size M27
Housing type Cable
Housing material Copper-Zinc alloy
Housing surface material Nickel
Temperature Range -40°C to +125°C
