Hummel

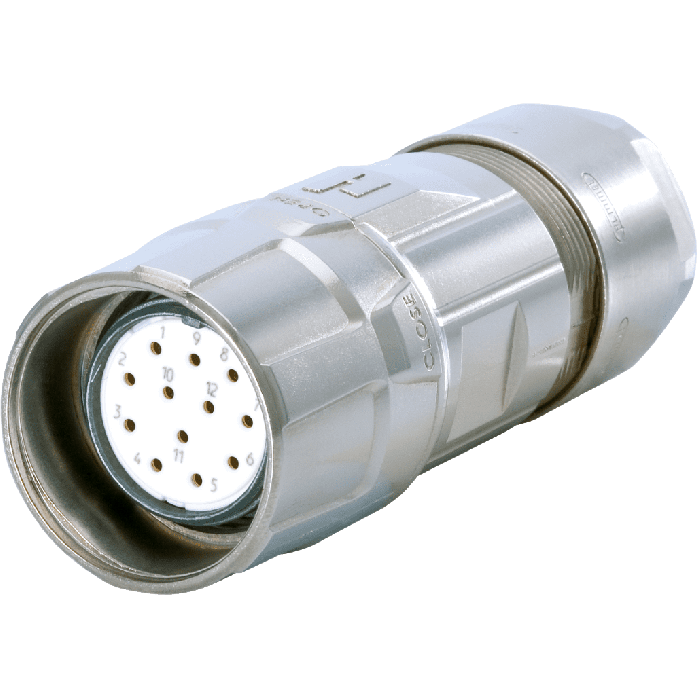

TWILOCK M23 Signal cable connector housing
TWILOCK M23 Signal cable connector housing from Hummel. Also known as 7166500000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7166500000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/mLCx4YyNVSo |
| Weight (kg) | 0.0708 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. TWILOCK-S version is pluggable with Speedtec |
| Customs tariff number | 85366990 |
| EAN code | 4033878503027 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Cable |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Minimum mating cycles | > 1000 |
| Version | TWILOCK |
| Internal thread - plug in side | M23 x 1 |
| TWILOCK / TWILOCK-S diameter - plug in side (mm) | 28.0000 |
| Twilock / Twilock-S | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | shielded |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 7 - 12 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Cable |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
