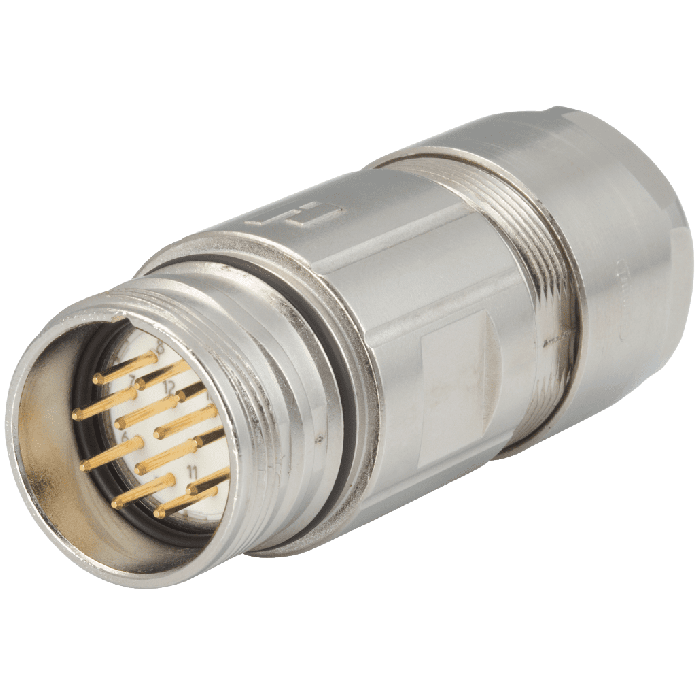

7.206.600.000
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Product Brand Name | 7206600000 |
Manufacturer | Hummel |
Additional Description |
|
Length (mm) | 66.7 |
Weight (kg) | 0.07713 |
Further information | Housing without contact inserts. Electrical data depend on the contact insert |
Customs tariff number | 85366990 |
EAN code | 4033878503089 |
ETIM 7 | EC003556 |
Body size | M23 |
Housing type | Coupler |
Material housing | brass. Die Casting |
Material housing surface | Nickel |
Coding | - |
Insert | Pin |
External thread - plug in side | M23 x 1 |
Degree of protection | 3 |
Locking type | Screw connection |
Shield | shielded |
Material seals / O-rings | NBR |
Panel hole (mm) | - |
Drill form (mm) | - |
Wall thickness (mm) | - |
Flange (mm) | - |
Hole diameter (mm) | - |
Cable diameter (mm) | 11 - 17 |
Protection class | IP 67, IP 69 K |
Usage | Signal |
Body size | M23 |
Housing type | Coupler |
Housing material | Brass. Die Casting |
Housing surface material | Nickel |
Temperature Range | -40°C to +125°C |
