7.210.500.000
7.210.500.000
Hummel

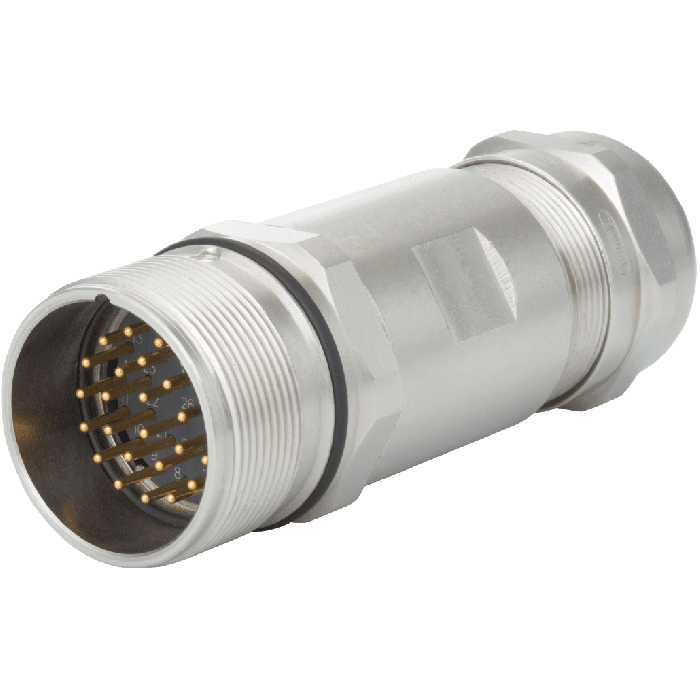

M27 Signal coupler connector housing
M27 Signal coupler connector housing from Hummel. Also known as 7210500000. The body material is Copper-Zinc alloy. Protection class IP 67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7210500000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 78.0000 |
| Weight (kg) | 0.07753 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878503102 |
| ETIM 7 | EC003556 |
| Body size | M27 |
| Housing type | Coupler |
| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Coding | - |
| Insert | Socket |
| External thread (AG) | - |
| External thread - plug in side | M27 x 1 |
| Twilock / Twilock-S | - |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Panel hole (mm) | - |
| Drill form (mm) | - |
| Wall thickness (mm) | - |
| Flange (mm) | - |
| Hole diameter (mm) | - |
| Cable diameter (mm) | 7 - 12 |
| Wrench size SW1 / SW2 / SW3 (mm) | 27/25/27 |
| Protection class | IP 67 |
| Usage | Signal |
| Body size | M27 |
| Housing type | Coupler |
| Housing material | Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
