Hummel

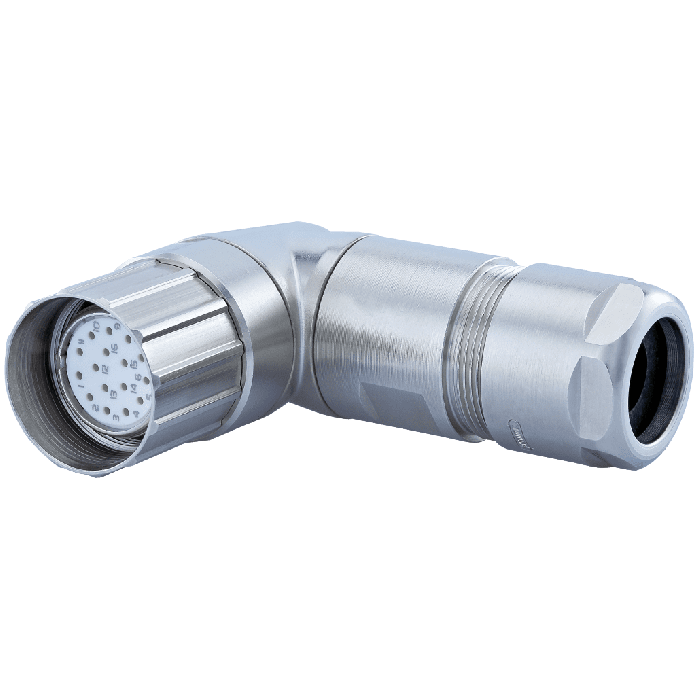

M23 Signal right-angle connector housing
M23 Signal right-angle connector housing from Hummel. Also known as 7306500000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Buy Online
| Attribute | Value |
|---|---|
| Product Brand Name | 7306500000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.15511 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878503263 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Right angled |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Coding | - |
| Internal thread - plug in side | M23 x 1 |
| Knurled nut diameter - plug in side (mm) | 27.2 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | shielded |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 7 - 12 |
| Wrench size SW1 / SW2 / SW3 (mm) | 24/25/27 |
| Protection class | IP 67, IP 69 K |
| Usage | Signal |
| Body size | M23 |
| Housing type | Right angled |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
