Hummel

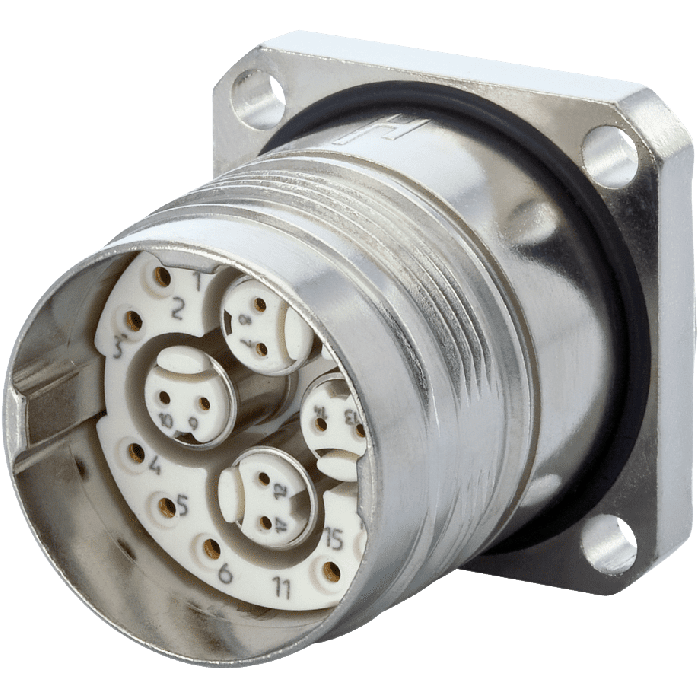

M23 Fast Ethernet PoE panel connector housing
M23 Fast Ethernet PoE panel connector housing from Hummel. Also known as 7468000000. The body material is Die Casting. Protection class IP 67
In stock
| Attribute | Value |
|---|---|
| Product Brand Name | 7468000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.02 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878503713 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | Die Casting |
| Material housing surface | Nickel |
| Installation type | Flange. Rear wall |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Panel hole (mm) | Ø 23 + 0,1 |
| Flange (mm) | 26 x 26 |
| Hole distance (mm) | 20.5 |
| Hole diameter (mm) | 4 x Ø 3,2 |
| Protection class | IP 67 |
| Usage | Data |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
