7.556.500.00S
7.556.500.00S
Hummel

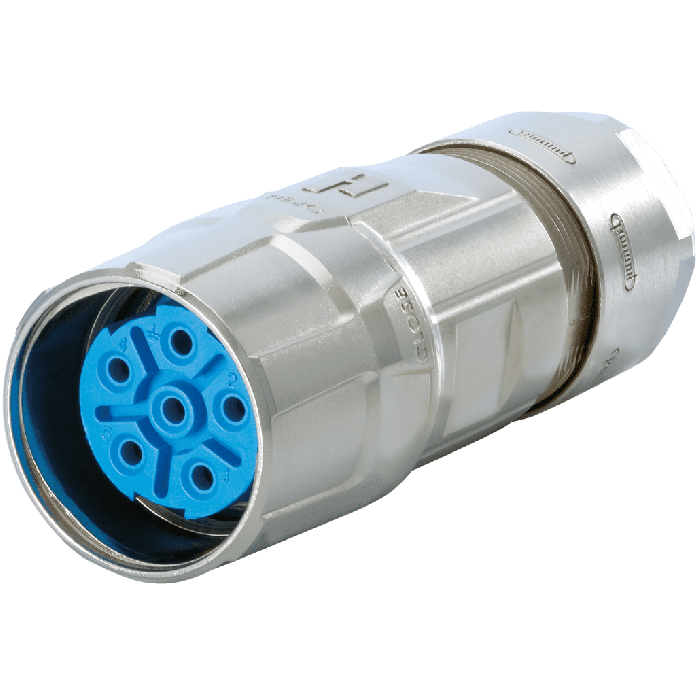

TWILOCK-S M23 Power cable connector housing
TWILOCK-S M23 Power cable connector housing from Hummel. Also known as 755650000S. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 755650000S |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/mLCx4YyNVSo |
| Length (mm) | 76.4 |
| Weight (kg) | 0.099 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. TWILOCK-S version is pluggable with Speedtec |
| Customs tariff number | 85366990 |
| EAN code | 4033878503867 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Cable |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Minimum mating cycles | > 1000 |
| Version | TWILOCK-S |
| Internal thread - plug in side | M23 x 1 |
| TWILOCK / TWILOCK-S diameter - plug in side (mm) | 28.0000 |
| Twilock / Twilock-S | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Cable diameter (mm) | 7 - 12 |
| Wrench size SW1 / SW2 (mm) | 24/24 |
| Suitable contact inserts | 7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084951121, 7084951122, 7084953101, 7084953102 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M23 |
| Housing type | Cable |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
