Hummel

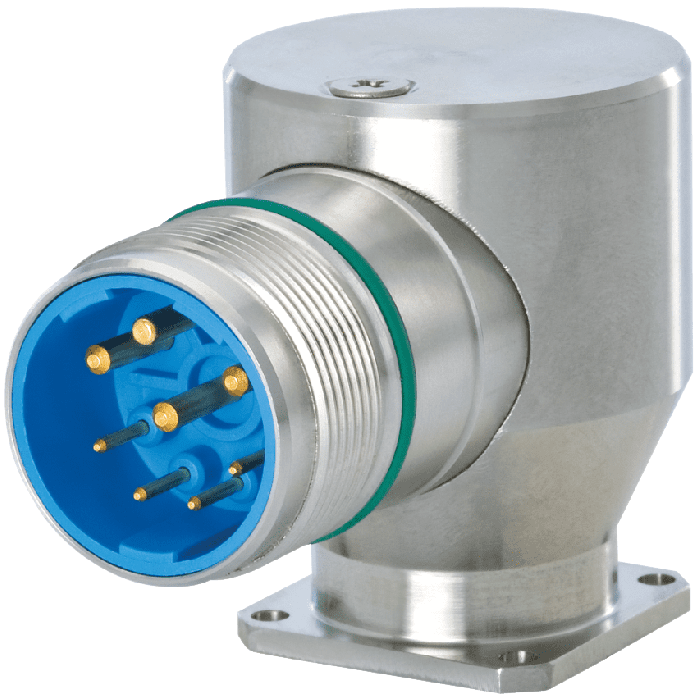

M16 Power panel connector housing made of stainless steel
M16 Power panel connector housing made of stainless steel from Hummel. Also known as 7630400000. The body material is Stainless steel 1.4404 (AISI 316). Protection class IP 67
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7630400000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.01908 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878504109 |
| ETIM 7 | EC003556 |
| Body size | M16 |
| Housing type | Panel |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Coding | - |
| Version | right angled |
| External thread - plug in side | - |
| Internal thread - plug in side | - |
| Twilock / Twilock-S | - |
| Locking type | Screw connection |
| Shield | unshielded |
| Material seals / O-rings | FKM (FPM) |
| Flange (mm) | 25 x 25 |
| Hole distance (mm) | 19.8 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Protection class | IP 67 |
| Usage | Power |
| Body size | M16 |
| Housing type | Panel |
| Housing material | Stainless steel 1.4404 (AISI 316) |
| Temperature Range | -40°C to +125°C |
