Hummel

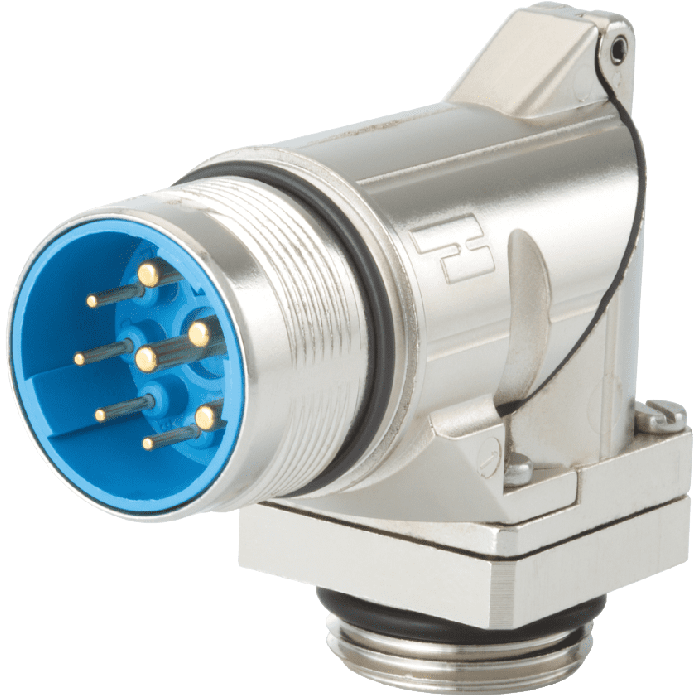

M23 Power panel connector housing
M23 Power panel connector housing from Hummel. Also known as 7636000000. The body material is Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7636000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/H5rttn0oroY |
| Weight (kg) | 0.053 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. 7.639.XXX.XXX only pin insert possible |
| Customs tariff number | 85366990 |
| EAN code | 4033878504123 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel - right angled |
| Material housing | Die Casting |
| Material housing surface | Nickel |
| Installation type | Flange |
| Version | right angled |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Material seals / O-rings | FKM (FPM);NBR |
| Rotatable degrees | 335.0000 |
| Panel hole (mm) | M20 + 0,1 |
| Flange (mm) | 25 x 25 |
| Hole distance (mm) | 19.8 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Suitable contact inserts | 7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084953101, 7084953102 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M23 |
| Housing type | Panel - Right angled |
| Housing material | Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
