Hummel

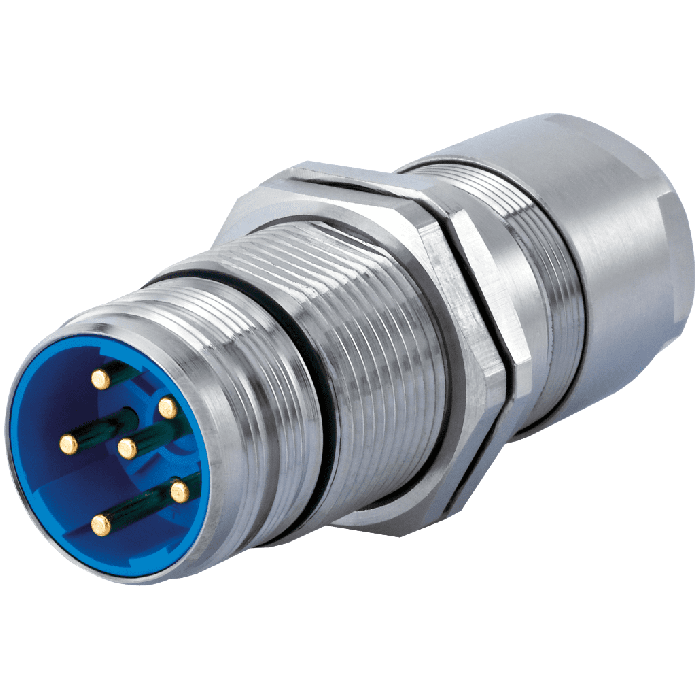

M23 Power panel connector housing
M23 Power panel connector housing from Hummel. Also known as 7653600000. The body material is brass. Copper-Zinc alloy. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7653600000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 71.5 |
| Weight (kg) | 0.08344 |
| Further information | The housings of M23 Hybrid and M23 Power are identical due to our modularity.. Housing without contact inserts. Electrical data depend on the contact insert. 7.639.XXX.XXX only pin insert possible |
| Customs tariff number | 85366990 |
| EAN code | 4033878504208 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | brass. Copper-Zinc alloy |
| Material housing surface | Nickel |
| Installation type | Rear wall. Single hole mounting. Strain relief |
| External thread (AG) | M25 x 1.5 |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | shielded |
| Seal type | O-Ring |
| Material seals / O-rings | NBR |
| Panel hole (mm) | Ø 25 + 0,1 |
| Drill form (mm) | D 24,1 + 0,1;D Ø 25 + 0,1 |
| Cable diameter (mm) | 11 - 17 |
| Wrench size SW1 / SW2 / SW3 (mm) | 24/30/29 |
| Suitable contact inserts | 7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084944101, 7084944102, 7084951121, 7084951122, 7084953101, 7084953102 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Brass. Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
