Hummel

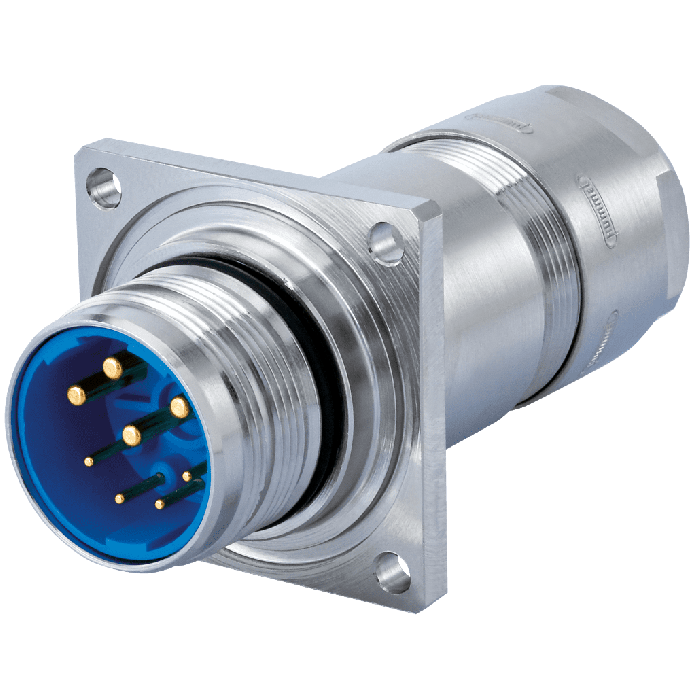

M23 Power panel connector housing
M23 Power panel connector housing from Hummel. Also known as 7683500000. The body material is Copper-Zinc alloy. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7683500000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Weight (kg) | 0.09267 |
| Further information | The housings of M23 Hybrid and M23 Power are identical due to our modularity.. Housing without contact inserts. Electrical data depend on the contact insert. 7.639.XXX.XXX only pin insert possible |
| Customs tariff number | 85366990 |
| EAN code | 4033878504246 |
| ETIM 7 | EC003556 |
| Body size | M23 |
| Housing type | Panel |
| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Installation type | Front wall. Rear wall. Strain relief |
| External thread - plug in side | M23 x 1 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | shielded |
| Material seals / O-rings | NBR |
| Panel hole (mm) | mind. Ø 26,5 + 0,2 |
| Flange (mm) | 35 x 35 |
| Hole distance (mm) | 28.4 |
| Hole diameter (mm) | 4 x Ø 3,2 |
| Cable diameter (mm) | 7 - 12 |
| Suitable contact inserts | 7084909101, 7084909102, 7084910101, 7084910102, 7084943121, 7084943122, 7084944101, 7084944102, 7084951121, 7084951122, 7084953101, 7084953102 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M23 |
| Housing type | Panel |
| Housing material | Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
