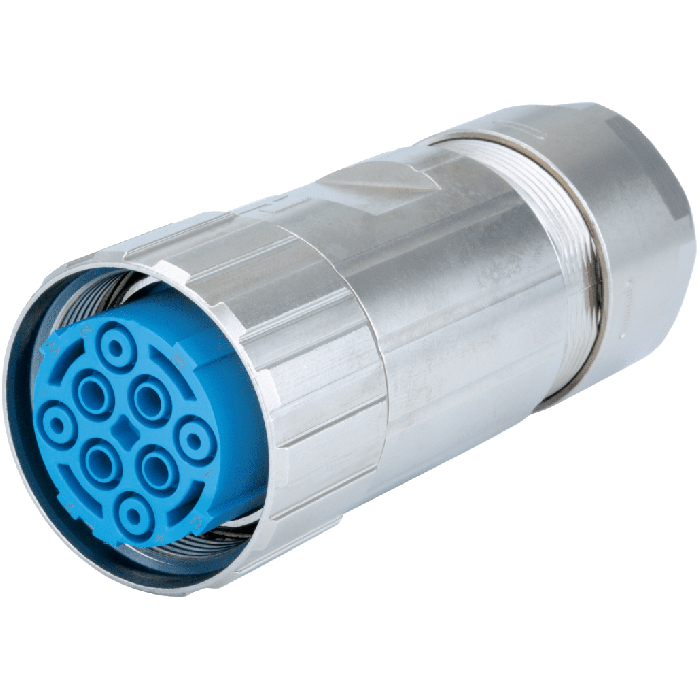

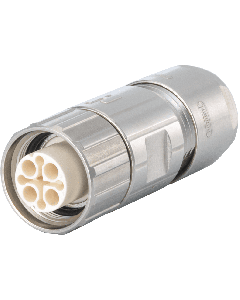

M40 Power cable connector incl. insert
M40 Power cable connector incl. insert from Hummel. Also known as 7710743000. The body material is brass. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7710743000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/H5rttn0oroY |
| Colour | blue |
| Length (mm) | 111.2 |
| Weight (kg) | 0.342 |
| Customs tariff number | 85366990 |
| EAN code | 4033878504291 |
| ETIM 7 | EC002635 |
| Body size | M40 |
| Characteristic of connection | Crimp |
| Housing type | Cable |
| Material housing | brass. Die Casting |
| Material housing surface | Nickel |
| Number of poles | 8.0000 |
| Coding | - |
| Insert | Socket |
| Signal contact diameter (mm) | 2.0000 |
| Power contact diameter (mm) | 3.6 |
| Minimum mating cycles | > 500 |
| Version | for socket inserts, with knurled nut |
| External thread - plug in side | - |
| Insulating body material | PBT |
| Internal thread - plug in side | M40 x 1.5 |
| Crimp range | 0.14 - 16 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Knurled nut diameter - plug in side (mm) | 46.0000 |
| Number of signal contacts | 4.0000 |
| Number of power contacts | 3.0000 |
| Number of PE contacts | 1.0000 |
| Twilock / Twilock-S | - |
| Degree of protection | 3 |
| Suitable data contacts | - |
| Locking type | Screw connection |
| Suitable signal contacts | 7015952002 |
| Shield | shielded |
| Seal type | O-Ring |
| Suitable power contacts | 7015953602;7015953612;7015953622;7015953624;7015953632 |
| Pole picture | 4 + 3 + PE |
| Material seals / O-rings | FKM (FPM);NBR |
| Suitable PE / FE contacts | 7015953602;7015953612;7015953622;7015953624;7015953632 |
| Signal terminal cross section | 0.14 – 1.5 mm² |
| Power terminal cross section | 2.5 – 16 mm² |
| Nominal current signal A | 28.0000 |
| Nominal current power A | 55.0000 |
| Cable diameter (mm) | 17 - 24 |
| Wrench size SW1 / SW2 (mm) | 40/38 |
| Nominal voltage at_degree of pollution 3 signal (V) | 300.0000 |
| Nominal voltage at degree of pollution 3 power (V) | 600.0000 |
| Test voltage signal (V) | 2500.0000 |
| Test voltage power (V) | 4000.0000 |
| Insulation resistance signal (Ohm) | > 10^13 |
| Insulation resistance power (Ohm) | > 10^13 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Max contact resistance power (mOhm) | 1.0000 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M40 |
| Housing type | Cable |
| Housing material | Brass. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
