7.740.023.000

7.740.023.000

7.740.023.000

Hummel

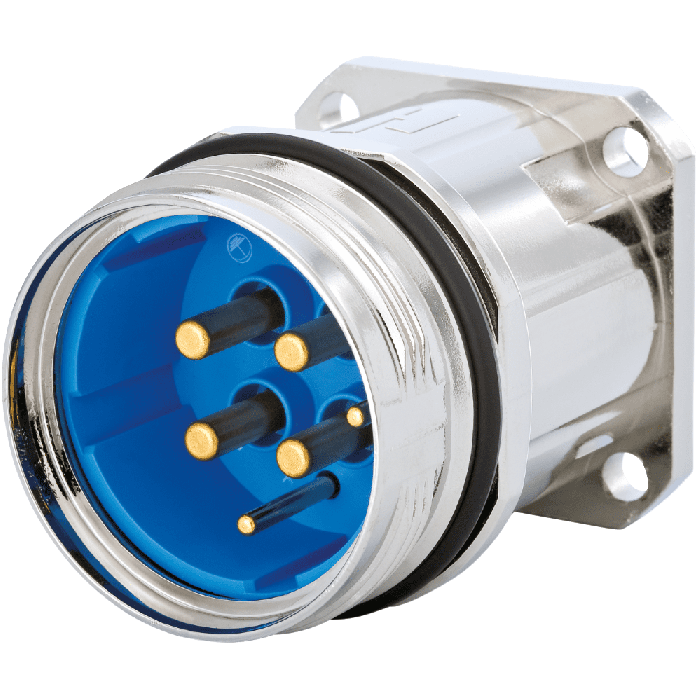

M40 Power panel connector incl. insert

M40 Power panel connector incl. insert from Hummel. Also known as 7740023000. The body material is Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Product Brand Name 7740023000
Manufacturer Hummel
Additional Description
  • Cable Diameter [mm] :
  • Housing Type : Panel
  • Internal thread plug-in side :
  • Knurled nut-⌀ plug-in side [mm]:
  • Locking type : Screw connection
  • Material housing : Nickel
  • Material seals/o-rings : FKM (FPM);NBR
  • Protection class : IP 67, IP 69 K
  • Shield : unshielded
  • Suitable contact inserts :
  • Temperature range : -40° C to +125° C
  • Wrench size (SW1/SW2) :
Colour blue
Length (mm) 51.0000
Weight (kg) 0.1714
Customs tariff number 85366990
EAN code 4033878504505
ETIM 7 EC002635
Body size M40
Characteristic of connection Crimp
Housing type Panel
Material housing Die Casting
Material housing surface Nickel
Number of poles 6.0000
Insert Pin
Signal contact diameter (mm) 2.0000
Power contact diameter (mm) 3.6
Installation type Flange. Front wall
Minimum mating cycles > 500
Version for pin inserts
External thread - plug in side M40 x 1.5
Insulating body material PBT
Crimp range 0.14 - 16 mm²
Material contact surface nickel, gold plated (0.25 µm)
Number of signal contacts 2.0000
Number of power contacts 3.0000
Number of PE contacts 1.0000
Degree of protection 3
Locking type Screw connection
Suitable signal contacts 7015952001
Shield unshielded
Seal type O-Ring
Suitable power contacts 7015953601;7015953611;7015953621;7015953622;7015953631
Pole picture 2 + 3 + PE
Material seals / O-rings FKM (FPM);NBR
Suitable PE / FE contacts 7015953601;7015953611;7015953621;7015953623;7015953631
Panel hole (mm) Ø 32 + 0,1
Flange (mm) 40 x 40
Hole distance (mm) 30.0000
Signal terminal cross section 0.14 – 1.5 mm²
Power terminal cross section 2.5 – 16 mm²
Hole diameter (mm) 4 x Ø 4,5
Nominal current signal A 28.0000
Nominal current power A 55.0000
Nominal voltage at_degree of pollution 3 signal (V) 300.0000
Nominal voltage at degree of pollution 3 power (V) 600.0000
Test voltage signal (V) 2500.0000
Test voltage power (V) 4000.0000
Insulation resistance signal (Ohm) > 10^13
Insulation resistance power (Ohm) > 10^13
Max contact resistance signal (mOhm) 3.0000
Max contact resistance power (mOhm) 1.0000
Protection class IP 67, IP 69 K
Usage Power
Body size M40
Housing type Panel
Housing material Die Casting
Housing surface material Nickel
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
