Hummel

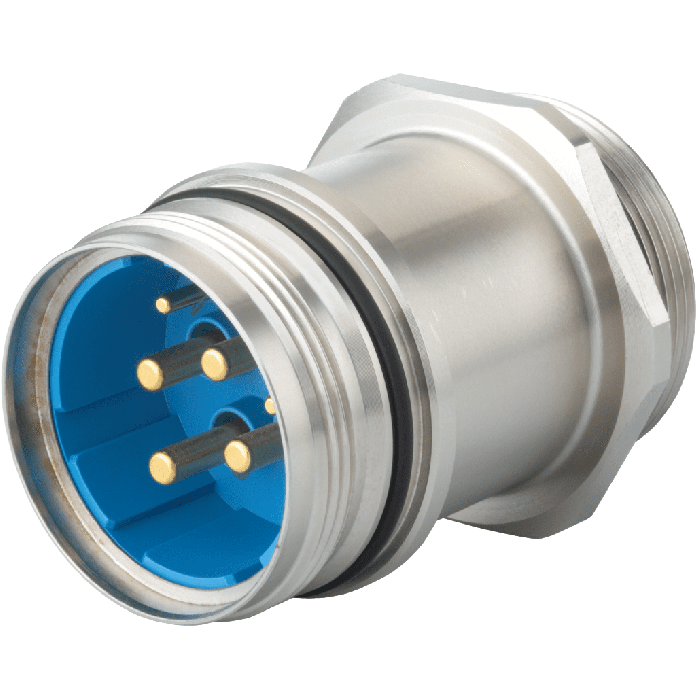

M40 Power panel connector incl. insert
M40 Power panel connector incl. insert from Hummel. Also known as 7742023000. The body material is Copper-Zinc alloy. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7742023000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Colour | blue |
| Length (mm) | 62.5 |
| Weight (kg) | 0.0022 |
| Customs tariff number | 85366990 |
| EAN code | 4033878504550 |
| ETIM 7 | EC002635 |
| Body size | M40 |
| Characteristic of connection | Crimp |
| Housing type | Panel |
| Material housing | Copper-Zinc alloy |
| Material housing surface | Nickel |
| Number of poles | 6.0000 |
| Insert | Pin |
| Signal contact diameter (mm) | 2.0000 |
| Power contact diameter (mm) | 3.6 |
| Installation type | Front wall. Single hole mounting |
| Minimum mating cycles | > 500 |
| Version | for pin inserts |
| External thread (AG) | M40 x 1.5 |
| External thread - plug in side | M40 x 1.5 |
| Insulating body material | PBT |
| Crimp range | 0.14 - 16 mm² |
| Material contact surface | nickel, gold plated (0.25 µm) |
| Number of signal contacts | 2.0000 |
| Number of power contacts | 3.0000 |
| Number of PE contacts | 1.0000 |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Suitable signal contacts | 7015952001 |
| Shield | unshielded |
| Seal type | O-Ring |
| Suitable power contacts | 7015953601;7015953611;7015953621;7015953622;7015953631 |
| Pole picture | 2 + 3 + PE |
| Material seals / O-rings | FKM (FPM);NBR |
| Suitable PE / FE contacts | 7015953601;7015953611;7015953621;7015953623;7015953631 |
| Panel hole (mm) | Ø 40,2 + 0,1 |
| Signal terminal cross section | 0.14 – 1.5 mm² |
| Power terminal cross section | 2.5 – 16 mm² |
| Nominal current signal A | 28.0000 |
| Nominal current power A | 55.0000 |
| Nominal voltage at_degree of pollution 3 signal (V) | 300.0000 |
| Nominal voltage at degree of pollution 3 power (V) | 600.0000 |
| Test voltage signal (V) | 2500.0000 |
| Test voltage power (V) | 4000.0000 |
| Insulation resistance signal (Ohm) | > 10^13 |
| Insulation resistance power (Ohm) | > 10^13 |
| Max contact resistance signal (mOhm) | 3.0000 |
| Max contact resistance power (mOhm) | 1.0000 |
| Protection class | IP 67, IP 69 K |
| Usage | Power |
| Body size | M40 |
| Housing type | Panel |
| Housing material | Copper-Zinc alloy |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
