Hummel

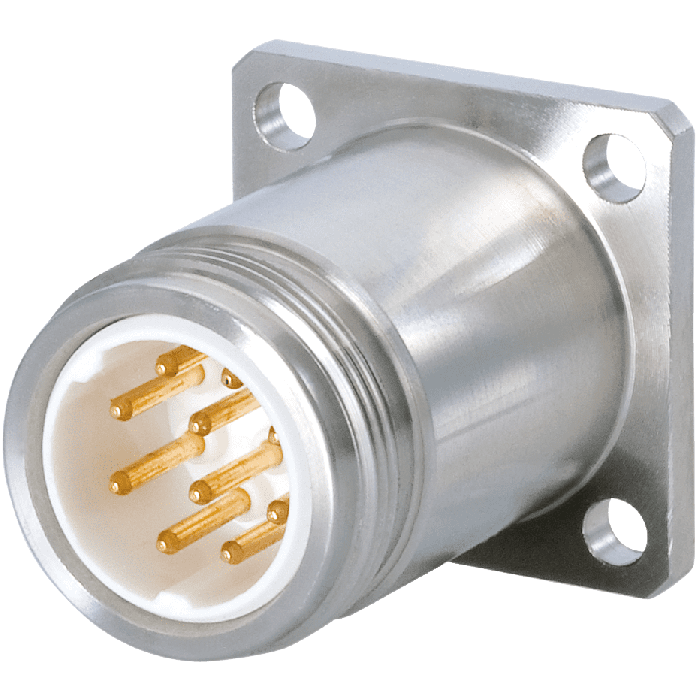

M16 panel connector housing made of stainless steel
M16 panel connector housing made of stainless steel from Hummel. Also known as 7840400000. The body material is Stainless steel 1.4404 (AISI 316). Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7840400000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 23.5 |
| Weight (kg) | 0.015 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878504840 |
| ETIM 7 | EC003556 |
| Body size | M16 |
| Characteristic of connection | Crimp |
| Housing type | Panel |
| Material housing | Stainless steel 1.4404 (AISI 316) |
| Coding | - |
| Installation type | Flange. Front wall |
| External thread - plug in side | M16 x 0.75 |
| Internal thread - plug in side | - |
| Twilock / Twilock-S | - |
| Degree of protection | 3 |
| Locking type | Screw connection |
| Shield | unshielded |
| Seal type | O-Ring |
| Material seals / O-rings | alternatively EPDM;FKM (FPM) |
| Flange (mm) | 20 x 20 |
| Hole distance (mm) | 15.0000 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Wrench size SW1 / SW2 (mm) | / |
| Protection class | IP 67, IP 69 K |
| Usage | Various |
| Body size | M16 |
| Housing type | Panel |
| Housing material | Stainless steel 1.4404 (AISI 316) |
| Temperature Range | -40°C to +125°C |
