Hummel

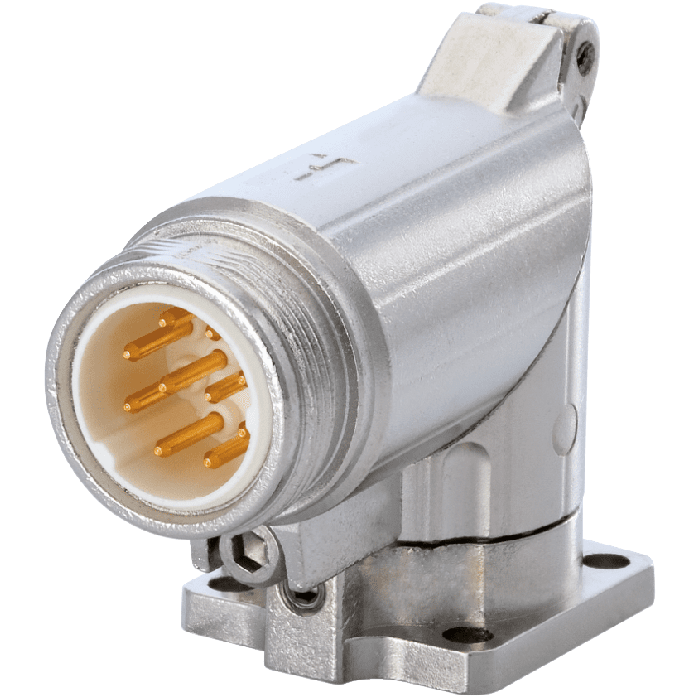

M16 panel connector housing
M16 panel connector housing from Hummel. Also known as 7843100000. The body material is Aluminium alloy. Copper-Zinc alloy. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7843100000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Video URL | https://youtu.be/TL8yBdE8RXU |
| Weight (kg) | 0.04891 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert. With locking screw on flange |
| Customs tariff number | 85366990 |
| EAN code | 4033878504871 |
| ETIM 7 | EC003556 |
| Body size | M16 |
| Housing type | Panel - right angled |
| Material housing | Aluminium alloy. Copper-Zinc alloy. Die Casting |
| Material housing surface | Nickel |
| Installation type | Flange |
| Version | right angled |
| External thread - plug in side | M16 x 0.75 |
| Twilock / Twilock-S | M16 x 0,75 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | unshielded |
| Material seals / O-rings | FKM (FPM);NBR |
| Rotatable degrees | 300.0000 |
| Flange (mm) | 25 x 25 |
| Hole distance (mm) | 19.8 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Wrench size SW1 / SW2 (mm) | 1.5/2 |
| Protection class | IP 67, IP 69 K |
| Usage | Various |
| Body size | M16 |
| Housing type | Panel - Right angled |
| Housing material | Aluminium alloy. Copper-Zinc alloy. Die Casting |
| Housing surface material | Nickel |
| Temperature Range | -40°C to +125°C |
