Hummel

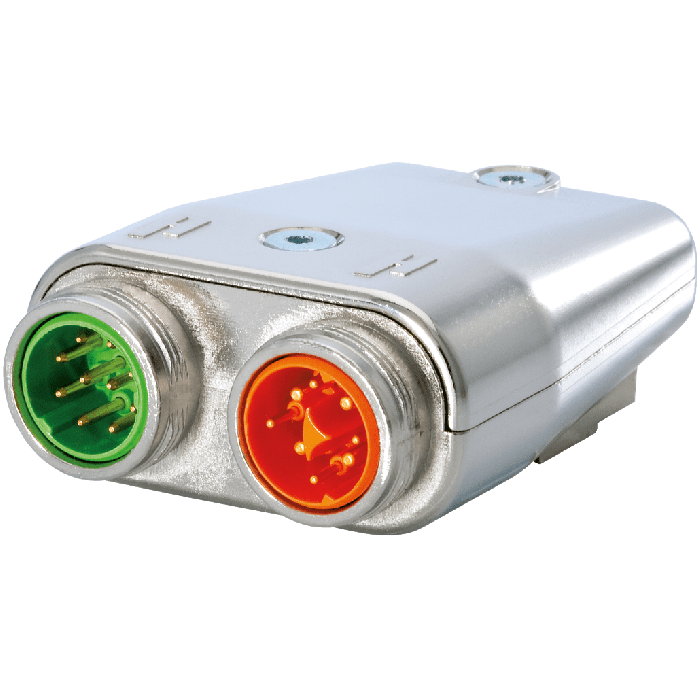

TWINTUS M16/M16 housing
TWINTUS M16/M16 housing from Hummel. Also known as 7848000000. The body material is Aluminium alloy. Copper-Zinc alloy. Die Casting. Protection class IP 67, IP 69 K
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | 7848000000 |
| Manufacturer | Hummel |
| Additional Description |
|
| Length (mm) | 56.2 |
| Weight (kg) | 0.056 |
| Further information | Housing without contact inserts. Electrical data depend on the contact insert |
| Customs tariff number | 85366990 |
| EAN code | 4033878504918 |
| ETIM 7 | EC003556 |
| Body size | M16 |
| Housing type | TWINTUS |
| Material housing | Aluminium alloy. Copper-Zinc alloy. Die Casting |
| Material housing surface | blank |
| Version | M16 / M16 |
| External thread - plug in side | M16 x 0.75 |
| Twilock / Twilock-S | M16 x 0,75 |
| Degree of protection | 3 |
| Locking type | Screw connection. Snap in |
| Shield | unshielded |
| Seal type | Seal |
| Material seals / O-rings | FKM (FPM);NBR |
| Flange (mm) | 20 x 20 |
| Hole distance (mm) | 15.0000 |
| Hole diameter (mm) | 4 x Ø 2,7 |
| Protection class | IP 67, IP 69 K |
| Temperature Range | -40°C to +125°C |
