350 MHz to 6 GHz, Statistical RF Power Sensor
350 MHz to 6 GHz, Statistical RF Power Sensor
Measure and Maintain Complex Wireless Systems

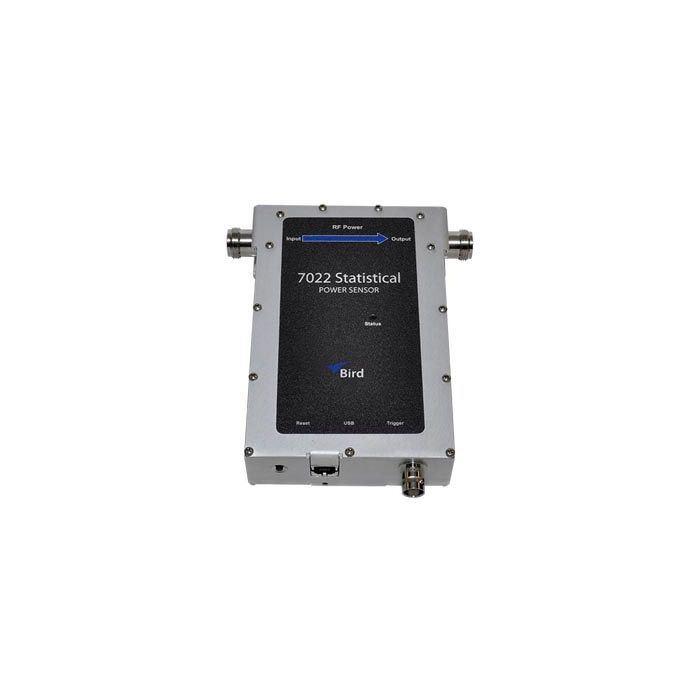

The 7022, Statistical RF Power Sensor is a rugged, easy-to-use field instrument that uses statistical sampling techniques. In modern communications, signal average power, although important is no longer a sufficient control variable.
These communication signals often require more diagnostic measurements. In the statistical mode, the power sensor measures the percentage of time the signal exists at a specific peak-to-average ratio. In the time domain mode, the sensor adds a variety of functions similar to an oscilloscope to our standard suite of measurements
The statistical power sensor can be used in all known communication formats and accurately measures a wide range of RF measurements for non-periodic signals such as EVDO, UMTS, LTE, and HDTV. Like all Bird Sensors, its calibration is also traceable to NIST standards with no field calibration required.
Modes:
- Time Domain Mode
- Statistical Mode
- Average Power Mode
(See Datasheet for more details)
Applications:
Analog Cellular, Digital Cellular, 3G, 4G, Tetra, APCO/P25 Phase 1 & 2, DMR, MOTOTRBO, Tunking, CDMA, TDMA, WCDMA, GSM, Transportation, Tactical Military, Radar, Avionics, Marine, LMR, Analog Broadcast, Digital Broadcast, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Paging, Public Safety, Telematics, Utilities, WIMAX, WLAN, EVDO, UMTS, LTE, and HDTV.
Standard Accessories:
- Bird RF 7022 Manual
- VPM3 Virtual Power Meter Software and Manual
- SeaLatch USB Cable and BNC Trigger Cable
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manufacturer | Bird |
| Impedance Ohm | 50.0000 |
| Directivity (dB) | <-30 dB, 350 to 1000 MHz (min) <-28 dB, 1000 to 6000 MHz (min) |
| Frequency Measurement Accuracy | ± 3MHz with CW signals |
| Frequency Range | 350 MHz to 6 GHz |
| Insertion Loss | 0.05 dB (max) |
| Insertion VSWR | 1.065 350 to 2000 MHz (max) 1.12, 2000 to 6000 MHz (max) |
| Peak average ratio | 12 dB, absolute peak power limited to 1500W |
| Power range | 0.25 W to 500 W average, Average Power Rating limited (see datasheet) |
| Connectors | Type-N (Female) |
| Data logging | Yes, with the VPM3, Virtual Power Meter Software |
| Dynamic Range | 33 dB |
| Temperature Range | Operating: –10 to +50 °C (+14 to +122 °F) Storage: –40 to +80 °C (–40 to +176 °F) |
| Calibration | Factory: NIST Traceable Field: No Field Calibration Required |
| Dimensions | 5.9 in x 4.8 in x 1.3 in (150 mm x 122 mm x 33 mm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
